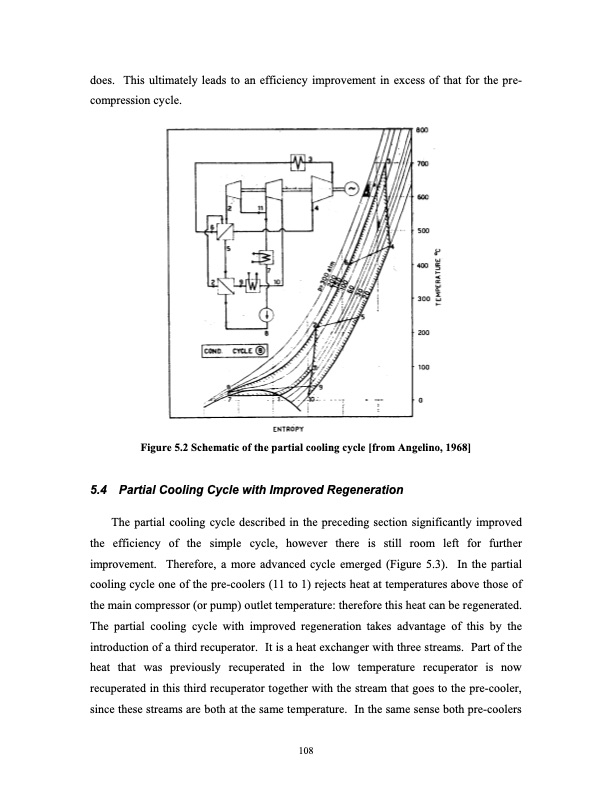

does. This ultimately leads to an efficiency improvement in excess of that for the pre- compression cycle. Figure 5.2 Schematic of the partial cooling cycle [from Angelino, 1968] 5.4 Partial Cooling Cycle with Improved Regeneration The partial cooling cycle described in the preceding section significantly improved the efficiency of the simple cycle, however there is still room left for further improvement. Therefore, a more advanced cycle emerged (Figure 5.3). In the partial cooling cycle one of the pre-coolers (11 to 1) rejects heat at temperatures above those of the main compressor (or pump) outlet temperature: therefore this heat can be regenerated. The partial cooling cycle with improved regeneration takes advantage of this by the introduction of a third recuperator. It is a heat exchanger with three streams. Part of the heat that was previously recuperated in the low temperature recuperator is now recuperated in this third recuperator together with the stream that goes to the pre-cooler, since these streams are both at the same temperature. In the same sense both pre-coolers 108PDF Image | Advanced Nuclear Power Technology Program A Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
