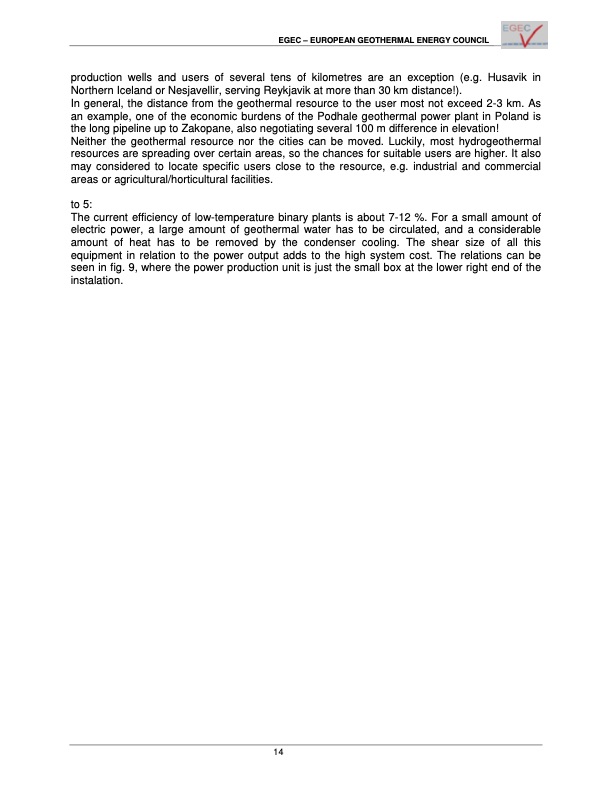

EGEC – EUROPEAN GEOTHERMAL ENERGY COUNCIL production wells and users of several tens of kilometres are an exception (e.g. Husavik in Northern Iceland or Nesjavellir, serving Reykjavik at more than 30 km distance!). In general, the distance from the geothermal resource to the user most not exceed 2-3 km. As an example, one of the economic burdens of the Podhale geothermal power plant in Poland is the long pipeline up to Zakopane, also negotiating several 100 m difference in elevation! Neither the geothermal resource nor the cities can be moved. Luckily, most hydrogeothermal resources are spreading over certain areas, so the chances for suitable users are higher. It also may considered to locate specific users close to the resource, e.g. industrial and commercial areas or agricultural/horticultural facilities. to 5: The current efficiency of low-temperature binary plants is about 7-12 %. For a small amount of electric power, a large amount of geothermal water has to be circulated, and a considerable amount of heat has to be removed by the condenser cooling. The shear size of all this equipment in relation to the power output adds to the high system cost. The relations can be seen in fig. 9, where the power production unit is just the small box at the lower right end of the instalation. 14PDF Image | COMBINED GEOTHERMAL HEAT AND POWER PLANTS CHP
