PDF Publication Title:
Text from PDF Page: 043

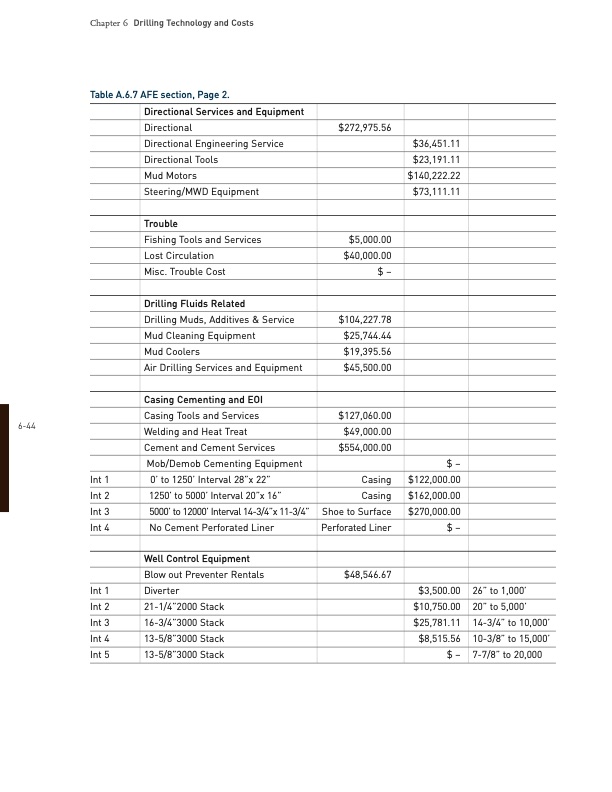

Chapter 6 Drilling Technology and Costs Table A.6.7 AFE section, Page 2. Directional Services and Equipment Directional $272,975.56 Directional Engineering Service $36,451.11 Directional Tools $23,191.11 Mud Motors $140,222.22 Steering/MWD Equipment $73,111.11 Trouble Fishing Tools and Services $5,000.00 Lost Circulation $40,000.00 Misc. Trouble Cost $ – Drilling Fluids Related Drilling Muds, Additives & Service $104,227.78 Mud Cleaning Equipment $25,744.44 Mud Coolers $19,395.56 Air Drilling Services and Equipment $45,500.00 Casing Cementing and EOI 644 Casing Tools and Services $127,060.00 Welding and Heat Treat $49,000.00 Cement and Cement Services $554,000.00 Mob/Demob Cementing Equipment Int 1 0’ to 1250’ Interval 28”x 22” Casing Int 2 1250’ to 5000’ Interval 20”x 16” Casing Int 3 5000’ to 12000’ Interval 143/4”x 113/4” Shoe to Surface Int 4 No Cement Perforated Liner Perforated Liner Well Control Equipment Blow out Preventer Rentals $48,546.67 Int 1 Diverter 26” to 1,000’ 20” to 5,000’ 143/4” to 10,000’ 103/8” to 15,000’ Int 2 211/4”2000 Stack Int 3 163/4”3000 Stack Int 4 135/8”3000 Stack Int 5 135/8”3000 Stack 77/8” to 20,000 $– $122,000.00 $162,000.00 $270,000.00 $– $3,500.00 $10,750.00 $25,781.11 $8,515.56 $–PDF Image | Drilling Technology and Costs
PDF Search Title:
Drilling Technology and CostsOriginal File Name Searched:
egs_chapter_6.pdfDIY PDF Search: Google It | Yahoo | Bing
