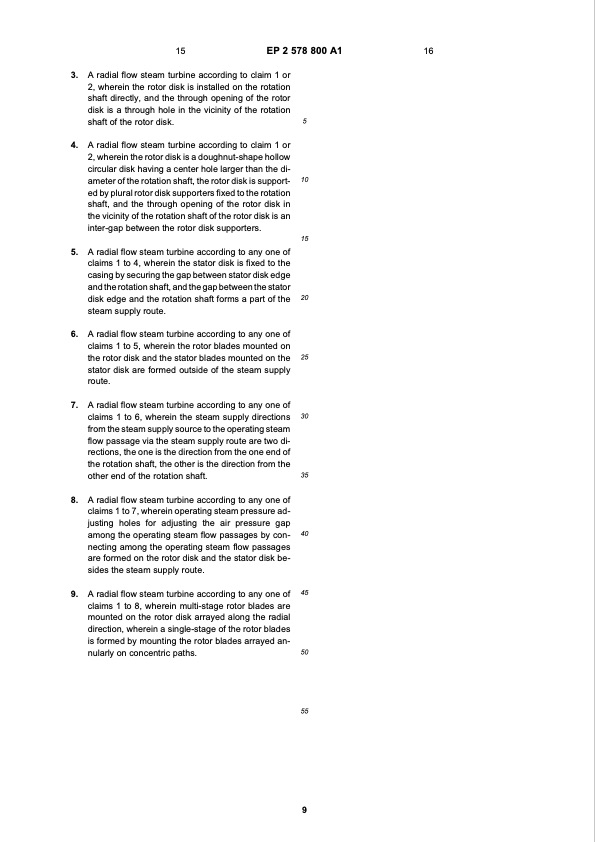

15 EP 2 578 800 A1 16 3. A radial flow steam turbine according to claim 1 or 2, wherein the rotor disk is installed on the rotation shaft directly, and the through opening of the rotor disk is a through hole in the vicinity of the rotation shaft of the rotor disk. 4. A radial flow steam turbine according to claim 1 or 2, wherein the rotor disk is a doughnut-shape hollow circular disk having a center hole larger than the di- ameter of the rotation shaft, the rotor disk is support- ed by plural rotor disk supporters fixed to the rotation shaft, and the through opening of the rotor disk in the vicinity of the rotation shaft of the rotor disk is an inter-gap between the rotor disk supporters. 5. A radial flow steam turbine according to any one of claims 1 to 4, wherein the stator disk is fixed to the casing by securing the gap between stator disk edge and the rotation shaft, and the gap between the stator disk edge and the rotation shaft forms a part of the steam supply route. 6. A radial flow steam turbine according to any one of claims 1 to 5, wherein the rotor blades mounted on the rotor disk and the stator blades mounted on the stator disk are formed outside of the steam supply route. 7. A radial flow steam turbine according to any one of claims 1 to 6, wherein the steam supply directions from the steam supply source to the operating steam flow passage via the steam supply route are two di- rections, the one is the direction from the one end of the rotation shaft, the other is the direction from the other end of the rotation shaft. 8. A radial flow steam turbine according to any one of claims 1 to 7, wherein operating steam pressure ad- justing holes for adjusting the air pressure gap among the operating steam flow passages by con- necting among the operating steam flow passages are formed on the rotor disk and the stator disk be- sides the steam supply route. 9. A radial flow steam turbine according to any one of claims 1 to 8, wherein multi-stage rotor blades are mounted on the rotor disk arrayed along the radial direction, wherein a single-stage of the rotor blades is formed by mounting the rotor blades arrayed an- nularly on concentric paths. 5 10 15 20 25 30 35 40 45 50 55 9PDF Image | EP 2 578 800 A1 EUROPEAN PATENT
