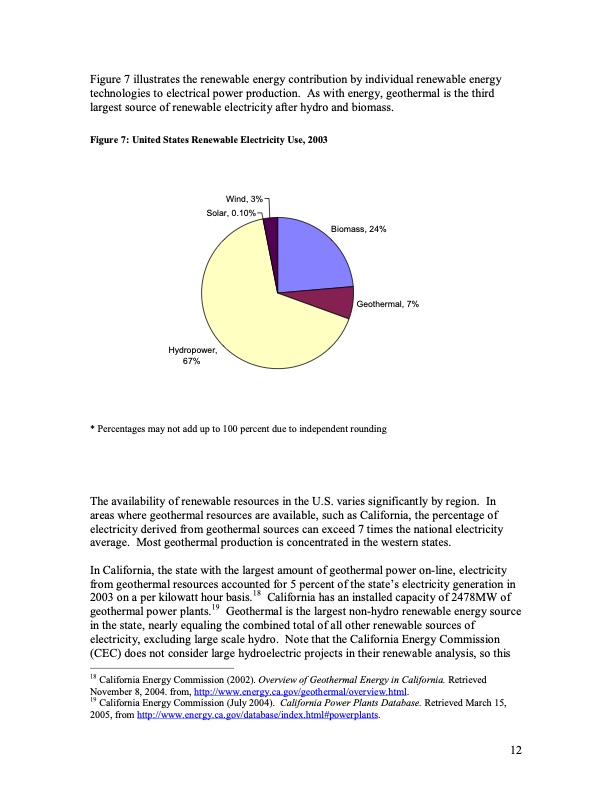

Figure 7 illustrates the renewable energy contribution by individual renewable energy technologies to electrical power production. As with energy, geothermal is the third largest source of renewable electricity after hydro and biomass. Figure 7: United States Renewable Electricity Use, 2003 Hydropower, 67% Wind, 3% Solar, 0.10% Biomass, 24% Geothermal, 7% * Percentages may not add up to 100 percent due to independent rounding The availability of renewable resources in the U.S. varies significantly by region. In areas where geothermal resources are available, such as California, the percentage of electricity derived from geothermal sources can exceed 7 times the national electricity average. Most geothermal production is concentrated in the western states. In California, the state with the largest amount of geothermal power on-line, electricity from geothermal resources accounted for 5 percent of the stateís electricity generation in 2003 on a per kilowatt hour basis.18 California has an installed capacity of 2478MW of geothermal power plants.19 Geothermal is the largest non-hydro renewable energy source in the state, nearly equaling the combined total of all other renewable sources of electricity, excluding large scale hydro. Note that the California Energy Commission (CEC) does not consider large hydroelectric projects in their renewable analysis, so this 18 California Energy Commission (2002). Overview of Geothermal Energy in California. Retrieved November 8, 2004. from, http://www.energy.ca.gov/geothermal/overview.html. 19 California Energy Commission (July 2004). California Power Plants Database. Retrieved March 15, 2005, from http://www.energy.ca.gov/database/index.html#powerplants. 12PDF Image | Guide to Geothermal Energy and the Environment Geothermal plants
