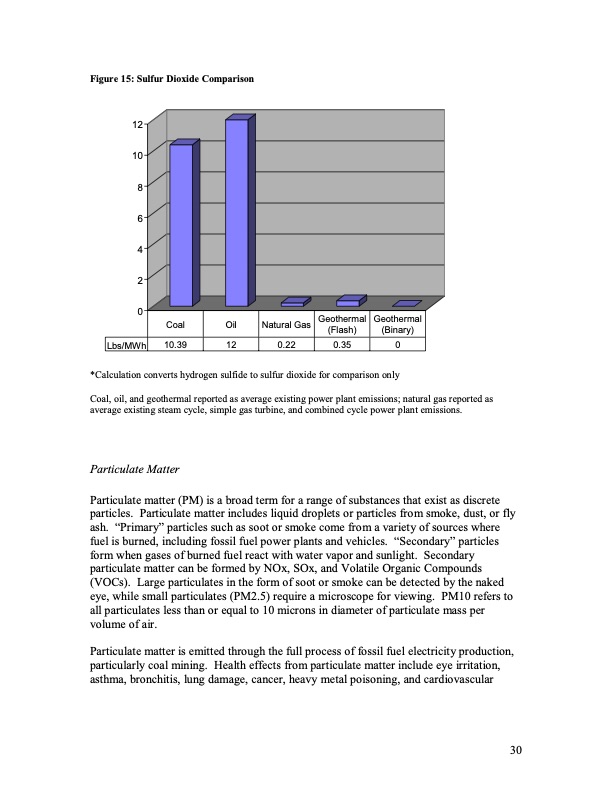

Figure 15: Sulfur Dioxide Comparison 12 10 8 6 4 2 0 *Calculation converts hydrogen sulfide to sulfur dioxide for comparison only Coal, oil, and geothermal reported as average existing power plant emissions; natural gas reported as average existing steam cycle, simple gas turbine, and combined cycle power plant emissions. Particulate Matter Particulate matter (PM) is a broad term for a range of substances that exist as discrete particles. Particulate matter includes liquid droplets or particles from smoke, dust, or fly ash. ìPrimaryî particles such as soot or smoke come from a variety of sources where fuel is burned, including fossil fuel power plants and vehicles. ìSecondaryî particles form when gases of burned fuel react with water vapor and sunlight. Secondary particulate matter can be formed by NOx, SOx, and Volatile Organic Compounds (VOCs). Large particulates in the form of soot or smoke can be detected by the naked eye, while small particulates (PM2.5) require a microscope for viewing. PM10 refers to all particulates less than or equal to 10 microns in diameter of particulate mass per volume of air. Particulate matter is emitted through the full process of fossil fuel electricity production, particularly coal mining. Health effects from particulate matter include eye irritation, asthma, bronchitis, lung damage, cancer, heavy metal poisoning, and cardiovascular Lbs/MWh Coal 10.39 Oil 12 Natural Gas Geothermal (Flash) Geothermal (Binary) 0.22 0.35 0 30PDF Image | Guide to Geothermal Energy and the Environment Geothermal plants
