PDF Publication Title:
Text from PDF Page: 059

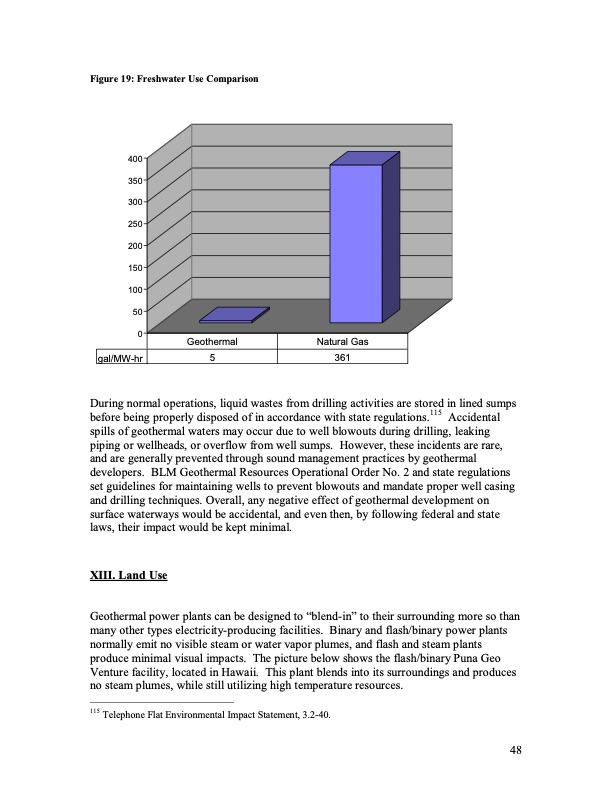

Figure 19: Freshwater Use Comparison 400 350 300 250 200 150 100 50 0 During normal operations, liquid wastes from drilling activities are stored in lined sumps before being properly disposed of in accordance with state regulations.115 Accidental spills of geothermal waters may occur due to well blowouts during drilling, leaking piping or wellheads, or overflow from well sumps. However, these incidents are rare, and are generally prevented through sound management practices by geothermal developers. BLM Geothermal Resources Operational Order No. 2 and state regulations set guidelines for maintaining wells to prevent blowouts and mandate proper well casing and drilling techniques. Overall, any negative effect of geothermal development on surface waterways would be accidental, and even then, by following federal and state laws, their impact would be kept minimal. XIII. Land Use Geothermal power plants can be designed to ìblend-inî to their surrounding more so than many other types electricity-producing facilities. Binary and flash/binary power plants normally emit no visible steam or water vapor plumes, and flash and steam plants produce minimal visual impacts. The picture below shows the flash/binary Puna Geo Venture facility, located in Hawaii. This plant blends into its surroundings and produces no steam plumes, while still utilizing high temperature resources. 115 Telephone Flat Environmental Impact Statement, 3.2-40. Geothermal Natural Gas gal/MW-hr 5 361 48PDF Image | Guide to Geothermal Energy and the Environment Geothermal plants
PDF Search Title:
Guide to Geothermal Energy and the Environment Geothermal plantsOriginal File Name Searched:
Environmental_Guide.pdfDIY PDF Search: Google It | Yahoo | Bing
