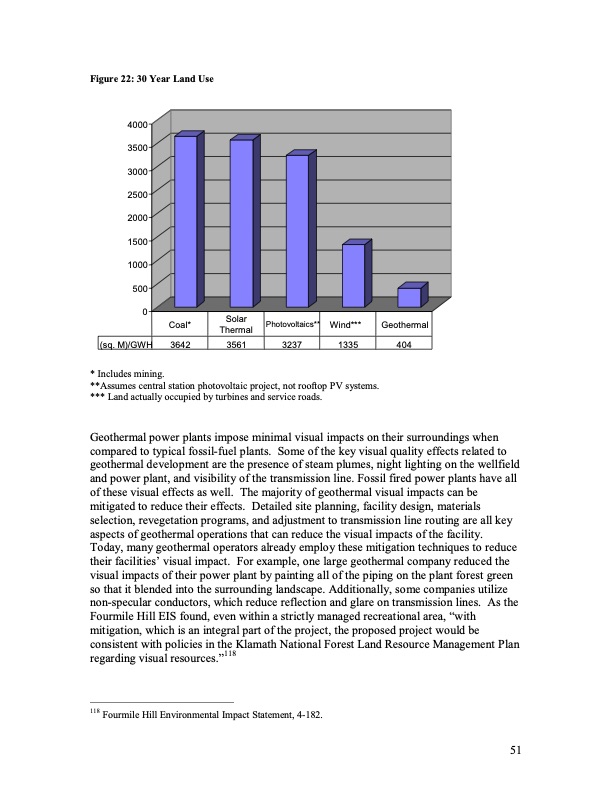

Figure 22: 30 Year Land Use 4000 3500 3000 2500 2000 1500 1000 500 0 * Includes mining. **Assumes central station photovoltaic project, not rooftop PV systems. *** Land actually occupied by turbines and service roads. Geothermal power plants impose minimal visual impacts on their surroundings when compared to typical fossil-fuel plants. Some of the key visual quality effects related to geothermal development are the presence of steam plumes, night lighting on the wellfield and power plant, and visibility of the transmission line. Fossil fired power plants have all of these visual effects as well. The majority of geothermal visual impacts can be mitigated to reduce their effects. Detailed site planning, facility design, materials selection, revegetation programs, and adjustment to transmission line routing are all key aspects of geothermal operations that can reduce the visual impacts of the facility. Today, many geothermal operators already employ these mitigation techniques to reduce their facilitiesí visual impact. For example, one large geothermal company reduced the visual impacts of their power plant by painting all of the piping on the plant forest green so that it blended into the surrounding landscape. Additionally, some companies utilize non-specular conductors, which reduce reflection and glare on transmission lines. As the Fourmile Hill EIS found, even within a strictly managed recreational area, ìwith mitigation, which is an integral part of the project, the proposed project would be consistent with policies in the Klamath National Forest Land Resource Management Plan regarding visual resources.î118 118 Fourmile Hill Environmental Impact Statement, 4-182. Coal* Solar Thermal 3561 Photovoltaics** Wind*** Geothermal (sq. M)/GWH 3642 3237 1335 404 51PDF Image | Guide to Geothermal Energy and the Environment Geothermal plants
