PDF Publication Title:
Text from PDF Page: 006

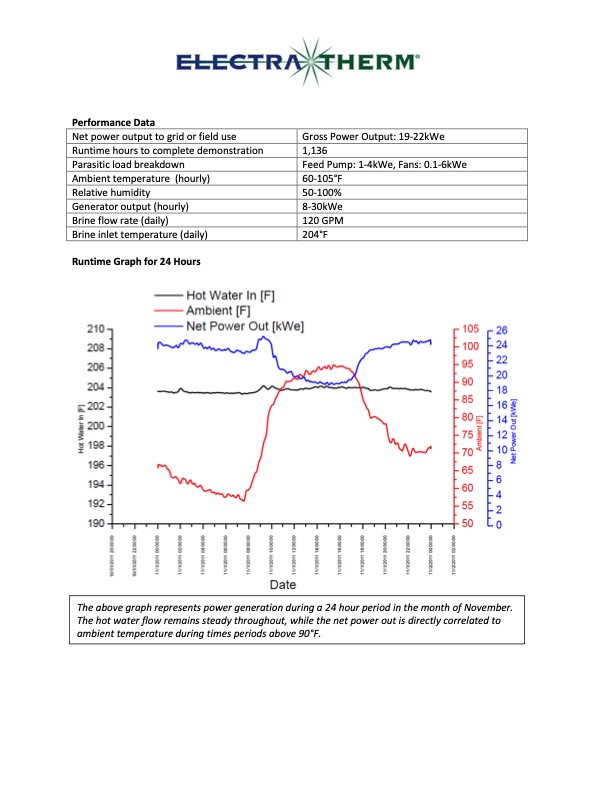

Performance Data Net power output to grid or field use Runtime hours to complete demonstration Parasitic load breakdown Ambient temperature (hourly) Relative humidity Generator output (hourly) Brine flow rate (daily) Brine inlet temperature (daily) Runtime Graph for 24 Hours Gross Power Output: 19-22kWe 1,136 Feed Pump: 1-4kWe, Fans: 0.1-6kWe 60-105°F 50-100% 8-30kWe 120 GPM 204°F The above graph represents power generation during a 24 hour period in the month of November. The hot water flow remains steady throughout, while the net power out is directly correlated to ambient temperature during times periods above 90°F.PDF Image | Mississippi Oilfield Generates Emission Geothermal Power
PDF Search Title:
Mississippi Oilfield Generates Emission Geothermal PowerOriginal File Name Searched:
Denbury_White_Paper.pdfDIY PDF Search: Google It | Yahoo | Bing
