PDF Publication Title:
Text from PDF Page: 013

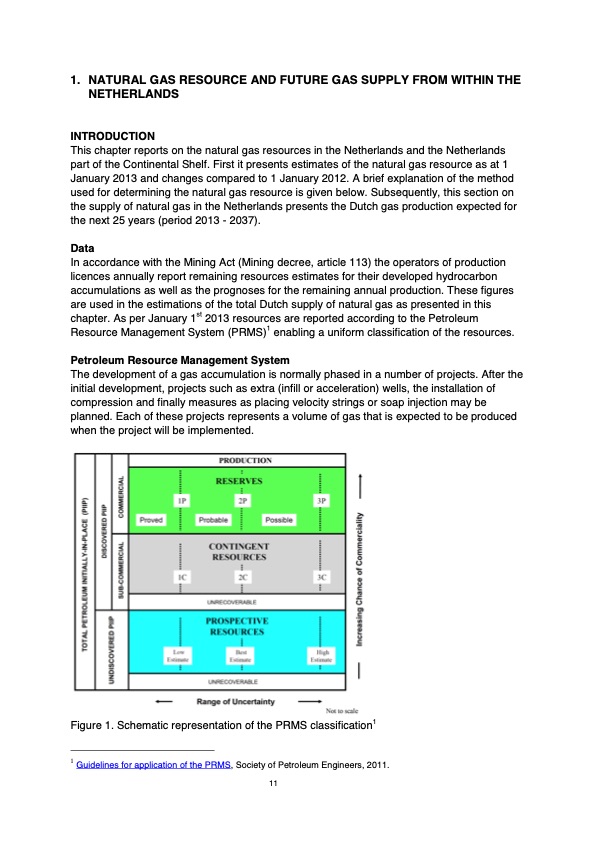

1. NATURALGASRESOURCEANDFUTUREGASSUPPLYFROMWITHINTHE NETHERLANDS INTRODUCTION This chapter reports on the natural gas resources in the Netherlands and the Netherlands part of the Continental Shelf. First it presents estimates of the natural gas resource as at 1 January 2013 and changes compared to 1 January 2012. A brief explanation of the method used for determining the natural gas resource is given below. Subsequently, this section on the supply of natural gas in the Netherlands presents the Dutch gas production expected for the next 25 years (period 2013 - 2037). Data In accordance with the Mining Act (Mining decree, article 113) the operators of production licences annually report remaining resources estimates for their developed hydrocarbon accumulations as well as the prognoses for the remaining annual production. These figures are used in the estimations of the total Dutch supply of natural gas as presented in this chapter. As per January 1st 2013 resources are reported according to the Petroleum Resource Management System (PRMS)1 enabling a uniform classification of the resources. Petroleum Resource Management System The development of a gas accumulation is normally phased in a number of projects. After the initial development, projects such as extra (infill or acceleration) wells, the installation of compression and finally measures as placing velocity strings or soap injection may be planned. Each of these projects represents a volume of gas that is expected to be produced when the project will be implemented. Figure 1. Schematic representation of the PRMS classification1 1 Guidelines for application of the PRMS, Society of Petroleum Engineers, 2011. 11PDF Image | Natural resources and geothermal energy in the Netherlands
PDF Search Title:
Natural resources and geothermal energy in the NetherlandsOriginal File Name Searched:
Delfstoffen_2012_UK_final_NLOG.pdfDIY PDF Search: Google It | Yahoo | Bing
