PDF Publication Title:

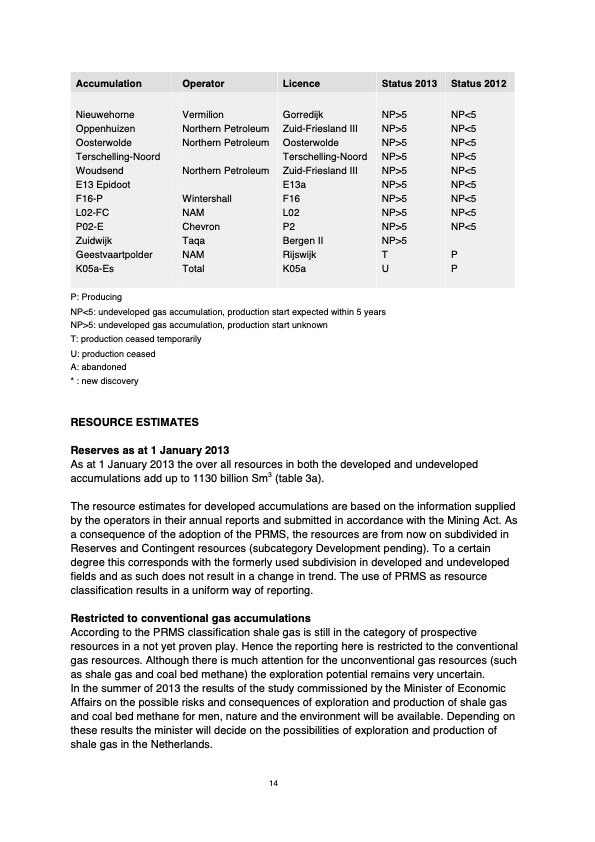

Text from PDF Page: 016
Accumulation Nieuwehorne Oppenhuizen Oosterwolde T erschelling-Noord Woudsend E13 Epidoot F16-P L02-FC P02-E Zuidwijk Geestvaartpolder K05a-Es Operator Vermilion Northern Petroleum Northern Petroleum Northern Petroleum Wintershall NAM Chevron T aqa NAM T otal P: Producing NP<5: undeveloped gas accumulation, production NP>5: undeveloped gas accumulation, production T: production ceased temporarily U: production ceased A: abandoned * : new discovery RESOURCE ESTIMATES Reserves as at 1 January 2013 Licence Gorredijk Zuid-Friesland III Oosterwolde T erschelling-Noord Zuid-Friesland III E13a F16 L02 P2 Bergen II Rijswijk K05a Status 2013 NP>5 NP>5 NP>5 NP>5 NP>5 NP>5 NP>5 NP>5 NP>5 NP>5 T U Status 2012 NP<5 NP<5 NP<5 NP<5 NP<5 NP<5 NP<5 NP<5 NP<5 P P start expected within 5 years start unknown As at 1 January 2013 the over all resources in both the developed and undeveloped accumulations add up to 1130 billion Sm3 (table 3a). The resource estimates for developed accumulations are based on the information supplied by the operators in their annual reports and submitted in accordance with the Mining Act. As a consequence of the adoption of the PRMS, the resources are from now on subdivided in Reserves and Contingent resources (subcategory Development pending). To a certain degree this corresponds with the formerly used subdivision in developed and undeveloped fields and as such does not result in a change in trend. The use of PRMS as resource classification results in a uniform way of reporting. Restricted to conventional gas accumulations According to the PRMS classification shale gas is still in the category of prospective resources in a not yet proven play. Hence the reporting here is restricted to the conventional gas resources. Although there is much attention for the unconventional gas resources (such as shale gas and coal bed methane) the exploration potential remains very uncertain. In the summer of 2013 the results of the study commissioned by the Minister of Economic Affairs on the possible risks and consequences of exploration and production of shale gas and coal bed methane for men, nature and the environment will be available. Depending on these results the minister will decide on the possibilities of exploration and production of shale gas in the Netherlands. 14PDF Image | Natural resources and geothermal energy in the Netherlands
