Text from PDF Page: 028

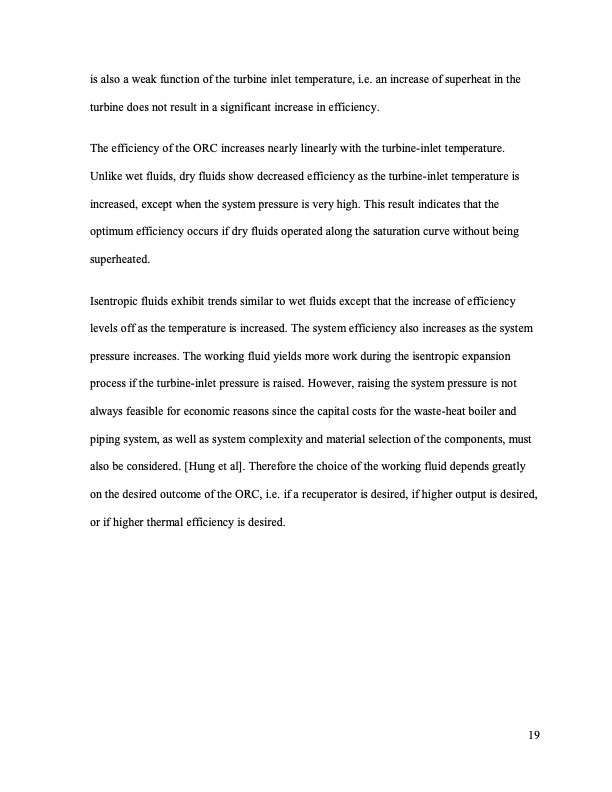

is also a weak function of the turbine inlet temperature, i.e. an increase of superheat in the turbine does not result in a significant increase in efficiency. The efficiency of the ORC increases nearly linearly with the turbine-inlet temperature. Unlike wet fluids, dry fluids show decreased efficiency as the turbine-inlet temperature is increased, except when the system pressure is very high. This result indicates that the optimum efficiency occurs if dry fluids operated along the saturation curve without being superheated. Isentropic fluids exhibit trends similar to wet fluids except that the increase of efficiency levels off as the temperature is increased. The system efficiency also increases as the system pressure increases. The working fluid yields more work during the isentropic expansion process if the turbine-inlet pressure is raised. However, raising the system pressure is not always feasible for economic reasons since the capital costs for the waste-heat boiler and piping system, as well as system complexity and material selection of the components, must also be considered. [Hung et al]. Therefore the choice of the working fluid depends greatly on the desired outcome of the ORC, i.e. if a recuperator is desired, if higher output is desired, or if higher thermal efficiency is desired. 19PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
PDF Search Title:
NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.Original File Name Searched:
