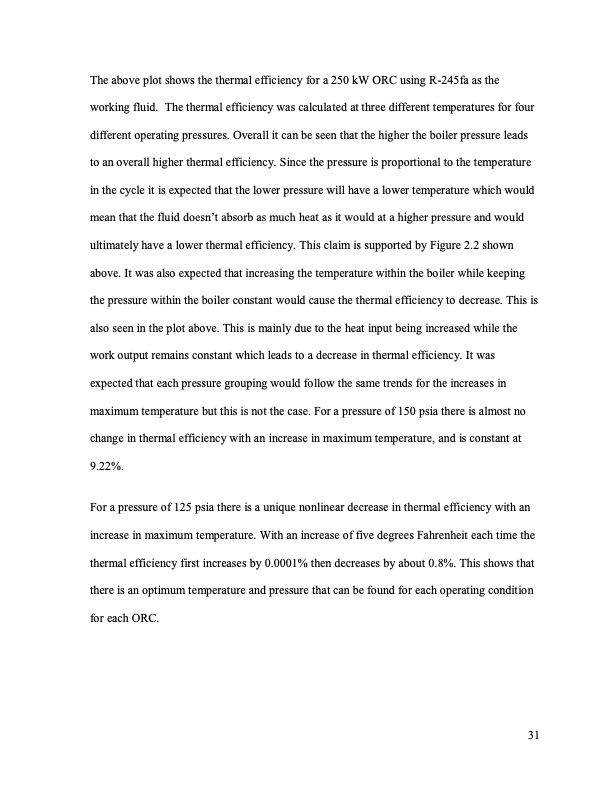

Text from PDF Page: 040
The above plot shows the thermal efficiency for a 250 kW ORC using R-245fa as the working fluid. The thermal efficiency was calculated at three different temperatures for four different operating pressures. Overall it can be seen that the higher the boiler pressure leads to an overall higher thermal efficiency. Since the pressure is proportional to the temperature in the cycle it is expected that the lower pressure will have a lower temperature which would mean that the fluid doesn’t absorb as much heat as it would at a higher pressure and would ultimately have a lower thermal efficiency. This claim is supported by Figure 2.2 shown above. It was also expected that increasing the temperature within the boiler while keeping the pressure within the boiler constant would cause the thermal efficiency to decrease. This is also seen in the plot above. This is mainly due to the heat input being increased while the work output remains constant which leads to a decrease in thermal efficiency. It was expected that each pressure grouping would follow the same trends for the increases in maximum temperature but this is not the case. For a pressure of 150 psia there is almost no change in thermal efficiency with an increase in maximum temperature, and is constant at 9.22%. For a pressure of 125 psia there is a unique nonlinear decrease in thermal efficiency with an increase in maximum temperature. With an increase of five degrees Fahrenheit each time the thermal efficiency first increases by 0.0001% then decreases by about 0.8%. This shows that there is an optimum temperature and pressure that can be found for each operating condition for each ORC. 31PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
PDF Search Title:
NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.Original File Name Searched:
