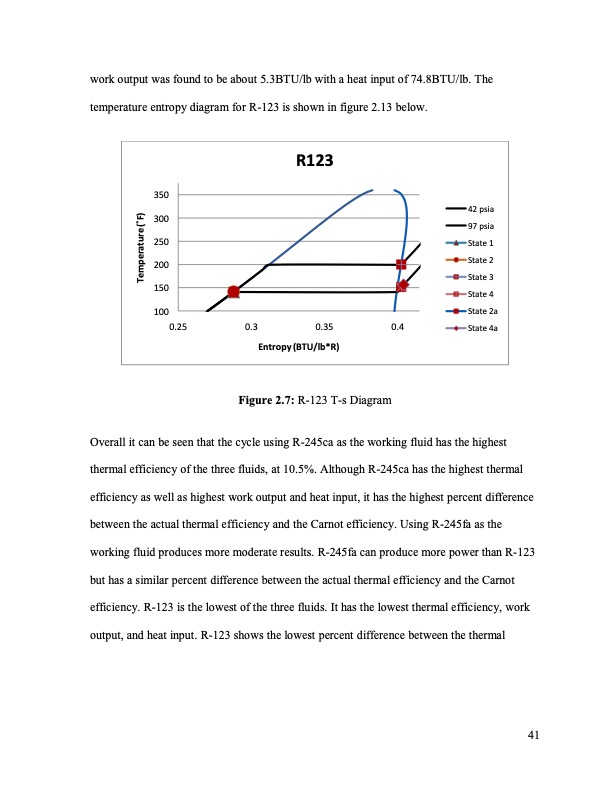

work output was found to be about 5.3BTU/lb with a heat input of 74.8BTU/lb. The temperature entropy diagram for R-123 is shown in figure 2.13 below. R123 350 300 250 200 150 100 0.25 0.3 0.35 0.4 Entropy (BTU/lb*R) 42 psia 97 psia State 1 State 2 State 3 State 4 State 2a State 4a Figure 2.7: R-123 T-s Diagram Overall it can be seen that the cycle using R-245ca as the working fluid has the highest thermal efficiency of the three fluids, at 10.5%. Although R-245ca has the highest thermal efficiency as well as highest work output and heat input, it has the highest percent difference between the actual thermal efficiency and the Carnot efficiency. Using R-245fa as the working fluid produces more moderate results. R-245fa can produce more power than R-123 but has a similar percent difference between the actual thermal efficiency and the Carnot efficiency. R-123 is the lowest of the three fluids. It has the lowest thermal efficiency, work output, and heat input. R-123 shows the lowest percent difference between the thermal 41 Temperature ( ̊F)PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
