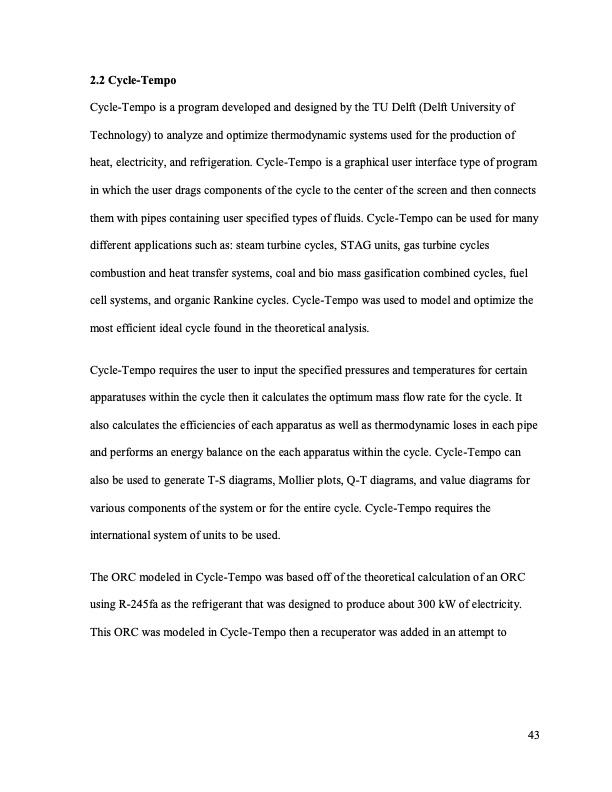

2.2 Cycle-Tempo Cycle-Tempo is a program developed and designed by the TU Delft (Delft University of Technology) to analyze and optimize thermodynamic systems used for the production of heat, electricity, and refrigeration. Cycle-Tempo is a graphical user interface type of program in which the user drags components of the cycle to the center of the screen and then connects them with pipes containing user specified types of fluids. Cycle-Tempo can be used for many different applications such as: steam turbine cycles, STAG units, gas turbine cycles combustion and heat transfer systems, coal and bio mass gasification combined cycles, fuel cell systems, and organic Rankine cycles. Cycle-Tempo was used to model and optimize the most efficient ideal cycle found in the theoretical analysis. Cycle-Tempo requires the user to input the specified pressures and temperatures for certain apparatuses within the cycle then it calculates the optimum mass flow rate for the cycle. It also calculates the efficiencies of each apparatus as well as thermodynamic loses in each pipe and performs an energy balance on the each apparatus within the cycle. Cycle-Tempo can also be used to generate T-S diagrams, Mollier plots, Q-T diagrams, and value diagrams for various components of the system or for the entire cycle. Cycle-Tempo requires the international system of units to be used. The ORC modeled in Cycle-Tempo was based off of the theoretical calculation of an ORC using R-245fa as the refrigerant that was designed to produce about 300 kW of electricity. This ORC was modeled in Cycle-Tempo then a recuperator was added in an attempt to 43PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
