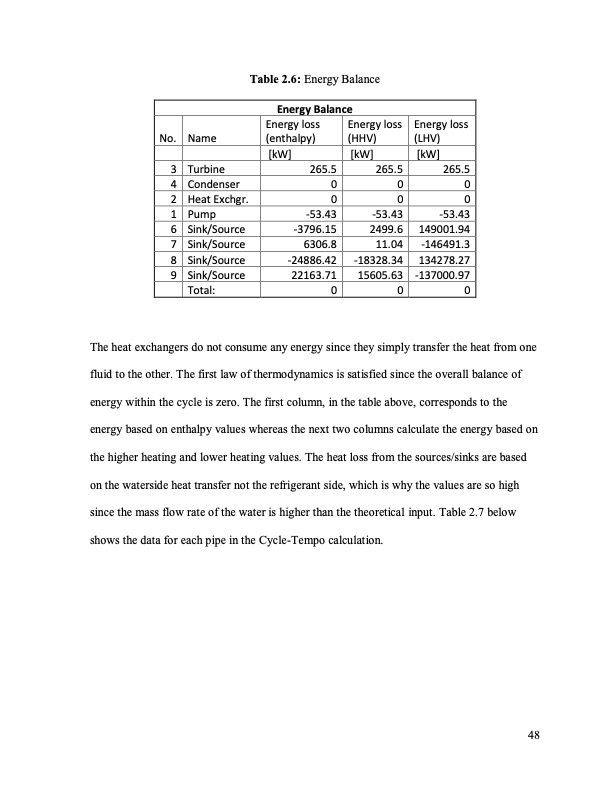

Table 2.6: Energy Balance Energy Balance Energy loss Energy loss No. Name (enthalpy) (HHV) Energy loss (LHV) [kW] 265.5 0 0 -53.43 149001.94 -146491.3 134278.27 -137000.97 0 [kW] 3 Turbine 265.5 4 Condenser 0 2 Heat Exchgr. 0 1 Pump -53.43 6 Sink/Source -3796.15 7 Sink/Source 6306.8 8 Sink/Source -24886.42 9 Sink/Source 22163.71 Total: 0 [kW] 265.5 0 0 -53.43 2499.6 11.04 -18328.34 15605.63 0 The heat exchangers do not consume any energy since they simply transfer the heat from one fluid to the other. The first law of thermodynamics is satisfied since the overall balance of energy within the cycle is zero. The first column, in the table above, corresponds to the energy based on enthalpy values whereas the next two columns calculate the energy based on the higher heating and lower heating values. The heat loss from the sources/sinks are based on the waterside heat transfer not the refrigerant side, which is why the values are so high since the mass flow rate of the water is higher than the theoretical input. Table 2.7 below shows the data for each pipe in the Cycle-Tempo calculation. 48PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
