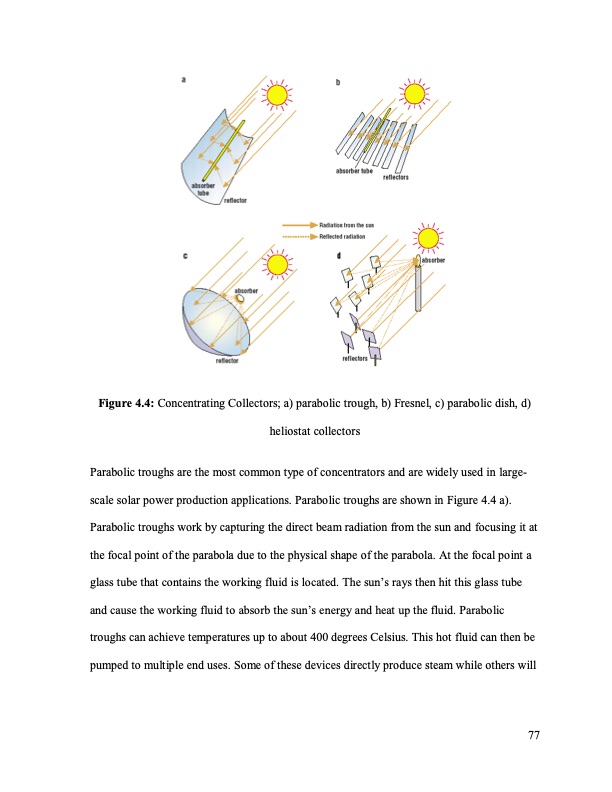

Figure 4.4: Concentrating Collectors; a) parabolic trough, b) Fresnel, c) parabolic dish, d) heliostat collectors Parabolic troughs are the most common type of concentrators and are widely used in large- scale solar power production applications. Parabolic troughs are shown in Figure 4.4 a). Parabolic troughs work by capturing the direct beam radiation from the sun and focusing it at the focal point of the parabola due to the physical shape of the parabola. At the focal point a glass tube that contains the working fluid is located. The sun’s rays then hit this glass tube and cause the working fluid to absorb the sun’s energy and heat up the fluid. Parabolic troughs can achieve temperatures up to about 400 degrees Celsius. This hot fluid can then be pumped to multiple end uses. Some of these devices directly produce steam while others will 77PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
