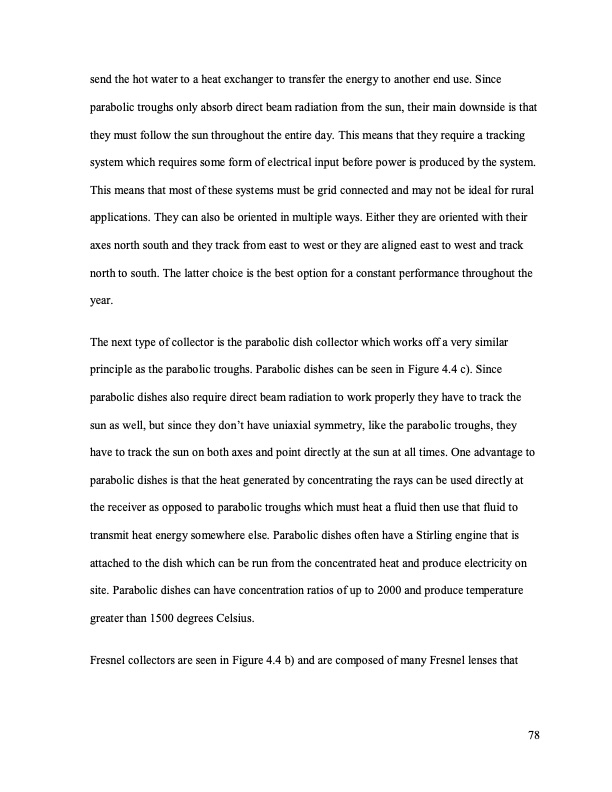

send the hot water to a heat exchanger to transfer the energy to another end use. Since parabolic troughs only absorb direct beam radiation from the sun, their main downside is that they must follow the sun throughout the entire day. This means that they require a tracking system which requires some form of electrical input before power is produced by the system. This means that most of these systems must be grid connected and may not be ideal for rural applications. They can also be oriented in multiple ways. Either they are oriented with their axes north south and they track from east to west or they are aligned east to west and track north to south. The latter choice is the best option for a constant performance throughout the year. The next type of collector is the parabolic dish collector which works off a very similar principle as the parabolic troughs. Parabolic dishes can be seen in Figure 4.4 c). Since parabolic dishes also require direct beam radiation to work properly they have to track the sun as well, but since they don’t have uniaxial symmetry, like the parabolic troughs, they have to track the sun on both axes and point directly at the sun at all times. One advantage to parabolic dishes is that the heat generated by concentrating the rays can be used directly at the receiver as opposed to parabolic troughs which must heat a fluid then use that fluid to transmit heat energy somewhere else. Parabolic dishes often have a Stirling engine that is attached to the dish which can be run from the concentrated heat and produce electricity on site. Parabolic dishes can have concentration ratios of up to 2000 and produce temperature greater than 1500 degrees Celsius. Fresnel collectors are seen in Figure 4.4 b) and are composed of many Fresnel lenses that 78PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
