Text from PDF Page: 097

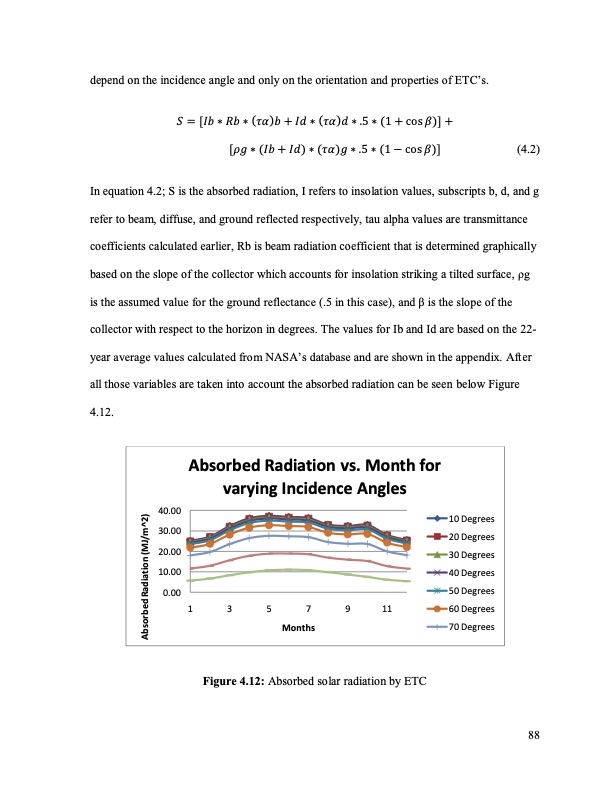

depend on the incidence angle and only on the orientation and properties of ETC’s. (4.2) In equation 4.2; S is the absorbed radiation, I refers to insolation values, subscripts b, d, and g refer to beam, diffuse, and ground reflected respectively, tau alpha values are transmittance coefficients calculated earlier, Rb is beam radiation coefficient that is determined graphically based on the slope of the collector which accounts for insolation striking a tilted surface, ρg is the assumed value for the ground reflectance (.5 in this case), and β is the slope of the collector with respect to the horizon in degrees. The values for Ib and Id are based on the 22- year average values calculated from NASA’s database and are shown in the appendix. After all those variables are taken into account the absorbed radiation can be seen below Figure 4.12. Absorbed Radiation vs. Month for varying Incidence Angles 0.00 40.00 30.00 20.00 10.00 10 Degrees 20 Degrees 30 Degrees 40 Degrees 50 Degrees 60 Degrees 70 Degrees 1 3 5 7 9 11 Months Figure 4.12: Absorbed solar radiation by ETC 88 Absorbed Radiation (MJ/m^2)PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
