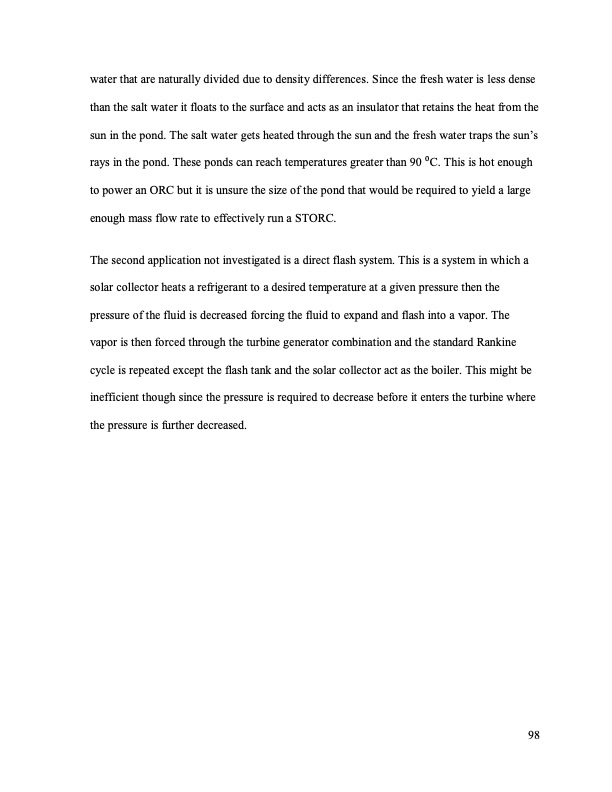

water that are naturally divided due to density differences. Since the fresh water is less dense than the salt water it floats to the surface and acts as an insulator that retains the heat from the sun in the pond. The salt water gets heated through the sun and the fresh water traps the sun’s rays in the pond. These ponds can reach temperatures greater than 90 0C. This is hot enough to power an ORC but it is unsure the size of the pond that would be required to yield a large enough mass flow rate to effectively run a STORC. The second application not investigated is a direct flash system. This is a system in which a solar collector heats a refrigerant to a desired temperature at a given pressure then the pressure of the fluid is decreased forcing the fluid to expand and flash into a vapor. The vapor is then forced through the turbine generator combination and the standard Rankine cycle is repeated except the flash tank and the solar collector act as the boiler. This might be inefficient though since the pressure is required to decrease before it enters the turbine where the pressure is further decreased. 98PDF Image | NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.
PDF Search Title:
NESTER, RYAN TIMOTHY. Organic Rankine Cycles: A Comparative Study and Analysis of Multiple Applications.Original File Name Searched:
