PDF Publication Title:
Text from PDF Page: 007

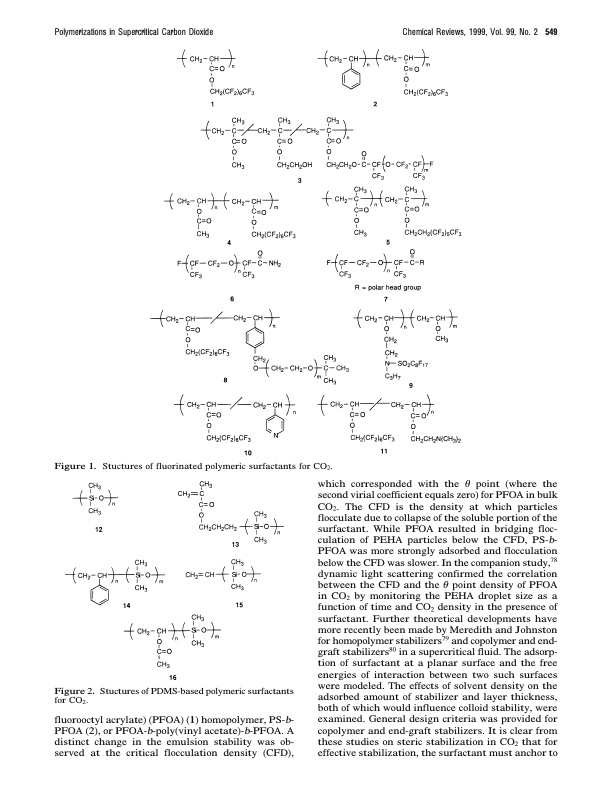

Polymerizations in Supercritical Carbon Dioxide Chemical Reviews, 1999, Vol. 99, No. 2 549 Figure 1. Stuctures of fluorinated polymeric surfactants for CO2. Figure2. StucturesofPDMS-basedpolymericsurfactants for CO2. fluorooctyl acrylate) (PFOA) (1) homopolymer, PS-b- PFOA (2), or PFOA-b-poly(vinyl acetate)-b-PFOA. A distinct change in the emulsion stability was ob- served at the critical flocculation density (CFD), which corresponded with the θ point (where the second virial coefficient equals zero) for PFOA in bulk CO2. The CFD is the density at which particles flocculate due to collapse of the soluble portion of the surfactant. While PFOA resulted in bridging floc- culation of PEHA particles below the CFD, PS-b- PFOA was more strongly adsorbed and flocculation below the CFD was slower. In the companion study,78 dynamic light scattering confirmed the correlation between the CFD and the θ point density of PFOA in CO2 by monitoring the PEHA droplet size as a function of time and CO2 density in the presence of surfactant. Further theoretical developments have more recently been made by Meredith and Johnston for homopolymer stabilizers79 and copolymer and end- graft stabilizers80 in a supercritical fluid. The adsorp- tion of surfactant at a planar surface and the free energies of interaction between two such surfaces were modeled. The effects of solvent density on the adsorbed amount of stabilizer and layer thickness, both of which would influence colloid stability, were examined. General design criteria was provided for copolymer and end-graft stabilizers. It is clear from these studies on steric stabilization in CO2 that for effective stabilization, the surfactant must anchor toPDF Image | Polymerizations in Supercritical Carbon Dioxide
PDF Search Title:
Polymerizations in Supercritical Carbon DioxideOriginal File Name Searched:
desimonepolymerization.pdfDIY PDF Search: Google It | Yahoo | Bing
