PDF Publication Title:
Text from PDF Page: 008

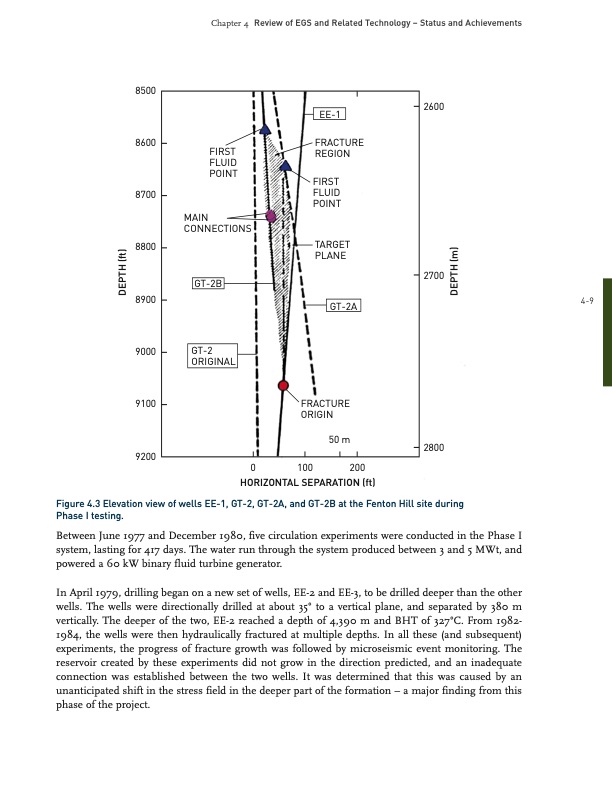

8500 8600 8700 Review of EGS and Related Technology – Status and Achievements MAIN POINT FIRST FLUID POINT EE-1 2600 FIRST FRACTURE FLUID REGION Chapter 4 GT-2A 8800 CONNECTIONS TARGET 8900 GT-2B PLANE 2700 49 9000 GT-2 9100 ORIGINAL FRACTURE 9200 0 100 50 m200 2800 ORIGIN HORIZONTAL SEPARATION (ft) Figure 4.3 Elevation view of wells EE1, GT2, GT2A, and GT2B at the Fenton Hill site during Phase I testing. Between June 1977 and December 1980, five circulation experiments were conducted in the Phase I system, lasting for 417 days. The water run through the system produced between 3 and 5 MWt, and powered a 60 kW binary fluid turbine generator. In April 1979, drilling began on a new set of wells, EE2 and EE3, to be drilled deeper than the other wells. The wells were directionally drilled at about 35° to a vertical plane, and separated by 380 m vertically. The deeper of the two, EE2 reached a depth of 4,390 m and BHT of 327°C. From 1982 1984, the wells were then hydraulically fractured at multiple depths. In all these (and subsequent) experiments, the progress of fracture growth was followed by microseismic event monitoring. The reservoir created by these experiments did not grow in the direction predicted, and an inadequate connection was established between the two wells. It was determined that this was caused by an unanticipated shift in the stress field in the deeper part of the formation – a major finding from this phase of the project. DEPTH (ft) DEPTH (m)PDF Image | Review of EGS and Related Technology
PDF Search Title:
Review of EGS and Related TechnologyOriginal File Name Searched:
egs_chapter_4.pdfDIY PDF Search: Google It | Yahoo | Bing
