Text from PDF Page: 034

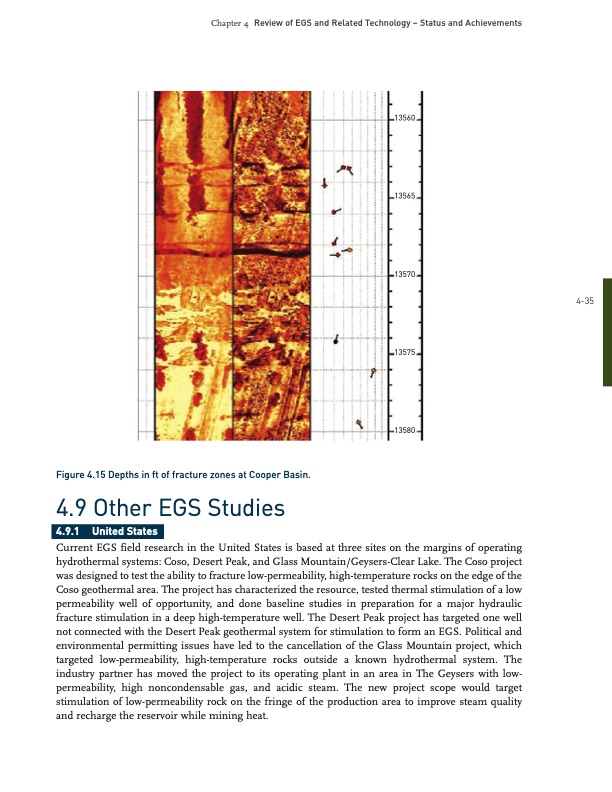

4.9 Other EGS Studies Chapter 4 13560 13565 13570 13575 13580 435 Review of EGS and Related Technology – Status and Achievements Figure 4.15 Depths in ft of fracture zones at Cooper Basin. 4.9.1 United States Current EGS field research in the United States is based at three sites on the margins of operating hydrothermal systems: Coso, Desert Peak, and Glass Mountain/GeysersClear Lake. The Coso project was designed to test the ability to fracture lowpermeability, hightemperature rocks on the edge of the Coso geothermal area. The project has characterized the resource, tested thermal stimulation of a low permeability well of opportunity, and done baseline studies in preparation for a major hydraulic fracture stimulation in a deep hightemperature well. The Desert Peak project has targeted one well not connected with the Desert Peak geothermal system for stimulation to form an EGS. Political and environmental permitting issues have led to the cancellation of the Glass Mountain project, which targeted lowpermeability, hightemperature rocks outside a known hydrothermal system. The industry partner has moved the project to its operating plant in an area in The Geysers with low permeability, high noncondensable gas, and acidic steam. The new project scope would target stimulation of lowpermeability rock on the fringe of the production area to improve steam quality and recharge the reservoir while mining heat.PDF Image | Review of EGS and Related Technology
