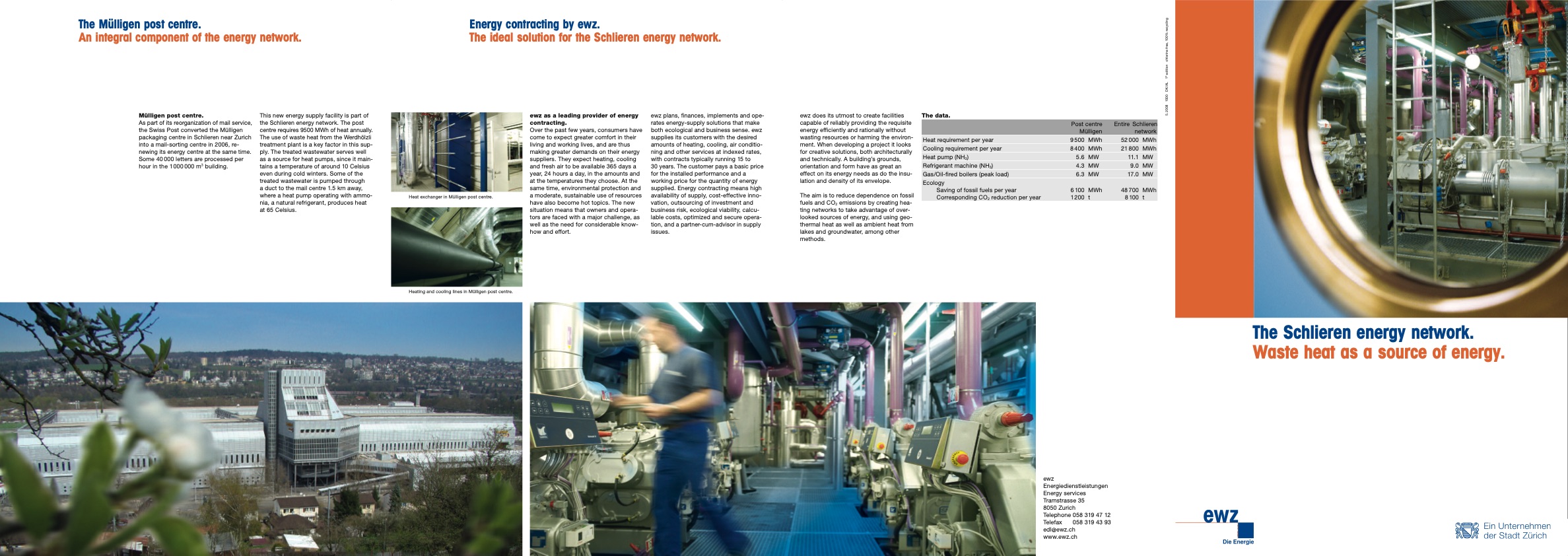

ewz does its utmost to create facilities capable of reliably providing the requisite energy efficiently and rationally without wasting resources or harming the environ- ment. When developing a project it looks for creative solutions, both architecturally and technically. A building’s grounds, orientation and form have as great an effect on its energy needs as do the insu- lation and density of its envelope. The aim is to reduce dependence on fossil fuels and CO2 emissions by creating hea- ting networks to take advantage of over- looked sources of energy, and using geo- thermal heat as well as ambient heat from lakes and groundwater, among other methods. The data. Heat requirement per year Cooling requirement per year Heat pump (NH3) Refrigerant machine (NH3) Gas/Oil-fired boilers (peak load) Ecology Savingoffossilfuelsperyear Corresponding CO2 reduction per year Post centre Mülligen 9 500 MWh 8 400 MWh 5.6 MW 4.3 MW 6.3 MW 6100 MWh 1200 t Entire Schlieren network 52000 MWh 21800 MWh 11.1 MW 9.0 MW 17.0 MW 48700 MWh 8100 t ewz Energiedienstleistungen Energy services Tramstrasse 35 8050 Zurich Telephone 058 319 47 12 Telefax 058 319 43 93 edl@ewz.ch www.ewz.ch 5. 2008 1000 DK/AL 1st edition chlorine free, 100% recyclingPDF Image | Schlieren energy network waste heat power
