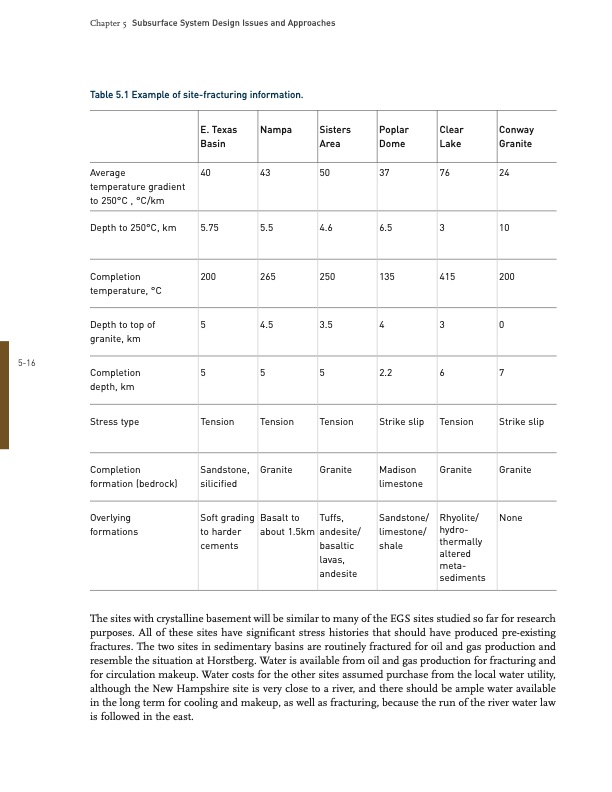

516 depth, km Stress type Tension Tension Tension Strike slip Tension Strike slip Chapter 5 Subsurface System Design Issues and Approaches Table 5.1 Example of sitefracturing information. E. Texas Nampa Sisters Poplar Clear Conway Basin Area Dome Lake Granite Average 40 43 50 37 76 24 temperature gradient to 250°C , °C/km Depth to 250°C, km 5.75 5.5 4.6 6.5 3 10 Completion 200 265 250 135 415 200 temperature, °C Depth to top of 5 4.5 3.5 4 3 0 granite, km Completion 5 5 5 2.2 6 7 Completion Sandstone, Granite Granite Madison Granite Granite formation (bedrock) silicified limestone Overlying Soft grading Basalt to Tuffs, Sandstone/ Rhyolite/ None formations to harder about 1.5km andesite/ limestone/ cements basaltic shale hydro thermally altered meta sediments lavas, andesite The sites with crystalline basement will be similar to many of the EGS sites studied so far for research purposes. All of these sites have significant stress histories that should have produced preexisting fractures. The two sites in sedimentary basins are routinely fractured for oil and gas production and resemble the situation at Horstberg. Water is available from oil and gas production for fracturing and for circulation makeup. Water costs for the other sites assumed purchase from the local water utility, although the New Hampshire site is very close to a river, and there should be ample water available in the long term for cooling and makeup, as well as fracturing, because the run of the river water law is followed in the east.PDF Image | Subsurface System Design Issues EGS vs. Hydrothermal Pool
