PDF Publication Title:
Text from PDF Page: 029

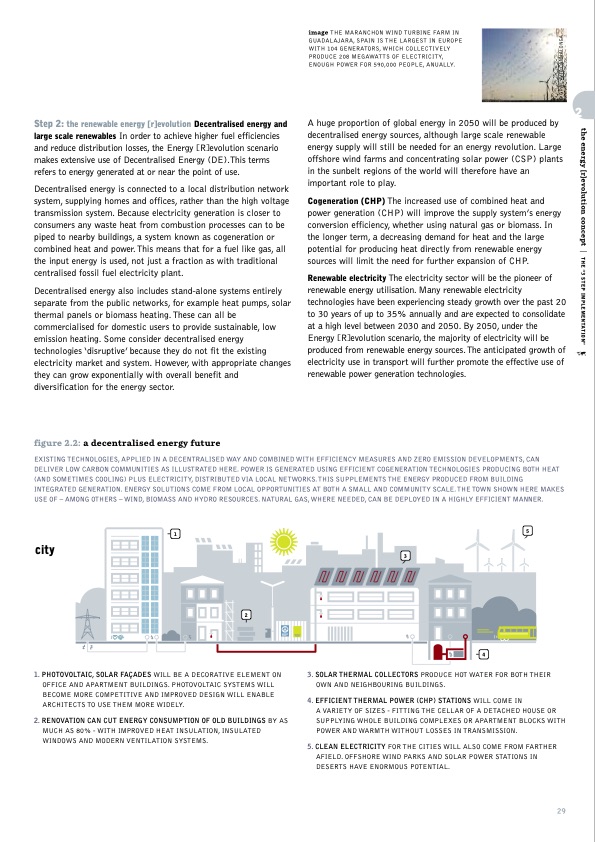

Step 2: the renewable energy [r]evolution Decentralised energy and large scale renewables In order to achieve higher fuel efficiencies and reduce distribution losses, the Energy [R]evolution scenario makes extensive use of Decentralised Energy (DE).This terms refers to energy generated at or near the point of use. Decentralised energy is connected to a local distribution network system, supplying homes and offices, rather than the high voltage transmission system. Because electricity generation is closer to consumers any waste heat from combustion processes can to be piped to nearby buildings, a system known as cogeneration or combined heat and power. This means that for a fuel like gas, all the input energy is used, not just a fraction as with traditional centralised fossil fuel electricity plant. Decentralised energy also includes stand-alone systems entirely separate from the public networks, for example heat pumps, solar thermal panels or biomass heating.These can all be commercialised for domestic users to provide sustainable, low emission heating. Some consider decentralised energy technologies ‘disruptive’ because they do not fit the existing electricity market and system. However, with appropriate changes they can grow exponentially with overall benefit and diversification for the energy sector. figure 2.2: a decentralised energy future image THE MARANCHON WIND TURBINE FARM IN GUADALAJARA, SPAIN IS THE LARGEST IN EUROPE WITH 104 GENERATORS, WHICH COLLECTIVELY PRODUCE 208 MEGAWATTS OF ELECTRICITY, ENOUGH POWER FOR 590,000 PEOPLE, ANUALLY. A huge proportion of global energy in 2050 will be produced by decentralised energy sources, although large scale renewable energy supply will still be needed for an energy revolution. Large offshore wind farms and concentrating solar power (CSP) plants in the sunbelt regions of the world will therefore have an important role to play. Cogeneration (CHP) The increased use of combined heat and power generation (CHP) will improve the supply system’s energy conversion efficiency, whether using natural gas or biomass. In the longer term, a decreasing demand for heat and the large potential for producing heat directly from renewable energy sources will limit the need for further expansion of CHP. Renewable electricity The electricity sector will be the pioneer of renewable energy utilisation. Many renewable electricity technologies have been experiencing steady growth over the past 20 to 30 years of up to 35% annually and are expected to consolidate at a high level between 2030 and 2050. By 2050, under the Energy [R]evolution scenario, the majority of electricity will be produced from renewable energy sources.The anticipated growth of electricity use in transport will further promote the effective use of renewable power generation technologies. 2 EXISTING TECHNOLOGIES, APPLIED IN A DECENTRALISED WAY AND COMBINED WITH EFFICIENCY MEASURES AND ZERO EMISSION DEVELOPMENTS, CAN DELIVER LOW CARBON COMMUNITIES AS ILLUSTRATED HERE. POWER IS GENERATED USING EFFICIENT COGENERATION TECHNOLOGIES PRODUCING BOTH HEAT (AND SOMETIMES COOLING) PLUS ELECTRICITY, DISTRIBUTED VIA LOCAL NETWORKS. THIS SUPPLEMENTS THE ENERGY PRODUCED FROM BUILDING INTEGRATED GENERATION. ENERGY SOLUTIONS COME FROM LOCAL OPPORTUNITIES AT BOTH A SMALL AND COMMUNITY SCALE. THE TOWN SHOWN HERE MAKES USE OF – AMONG OTHERS – WIND, BIOMASS AND HYDRO RESOURCES. NATURAL GAS, WHERE NEEDED, CAN BE DEPLOYED IN A HIGHLY EFFICIENT MANNER. 1 5 3 2 4 city 1. PHOTOVOLTAIC, SOLAR FAÇADES WILL BE A DECORATIVE ELEMENT ON OFFICE AND APARTMENT BUILDINGS. PHOTOVOLTAIC SYSTEMS WILL BECOME MORE COMPETITIVE AND IMPROVED DESIGN WILL ENABLE ARCHITECTS TO USE THEM MORE WIDELY. 2. RENOVATION CAN CUT ENERGY CONSUMPTION OF OLD BUILDINGS BY AS MUCH AS 80% - WITH IMPROVED HEAT INSULATION, INSULATED WINDOWS AND MODERN VENTILATION SYSTEMS. 3. SOLAR THERMAL COLLECTORS PRODUCE HOT WATER FOR BOTH THEIR OWN AND NEIGHBOURING BUILDINGS. 4. EFFICIENT THERMAL POWER (CHP) STATIONS WILL COME IN A VARIETY OF SIZES - FITTING THE CELLAR OF A DETACHED HOUSE OR SUPPLYING WHOLE BUILDING COMPLEXES OR APARTMENT BLOCKS WITH POWER AND WARMTH WITHOUT LOSSES IN TRANSMISSION. 5. CLEAN ELECTRICITY FOR THE CITIES WILL ALSO COME FROM FARTHER AFIELD. OFFSHORE WIND PARKS AND SOLAR POWER STATIONS IN DESERTS HAVE ENORMOUS POTENTIAL. 29 © GP/FLAVIO CANNALONGA the energy [r]evolution concept | THE “3 STEP IMPLEMENTATION”PDF Image | SUSTAINABLE WORLD ENERGY OUTLOOK
PDF Search Title:
SUSTAINABLE WORLD ENERGY OUTLOOKOriginal File Name Searched:
ER2012.pdfDIY PDF Search: Google It | Yahoo | Bing
