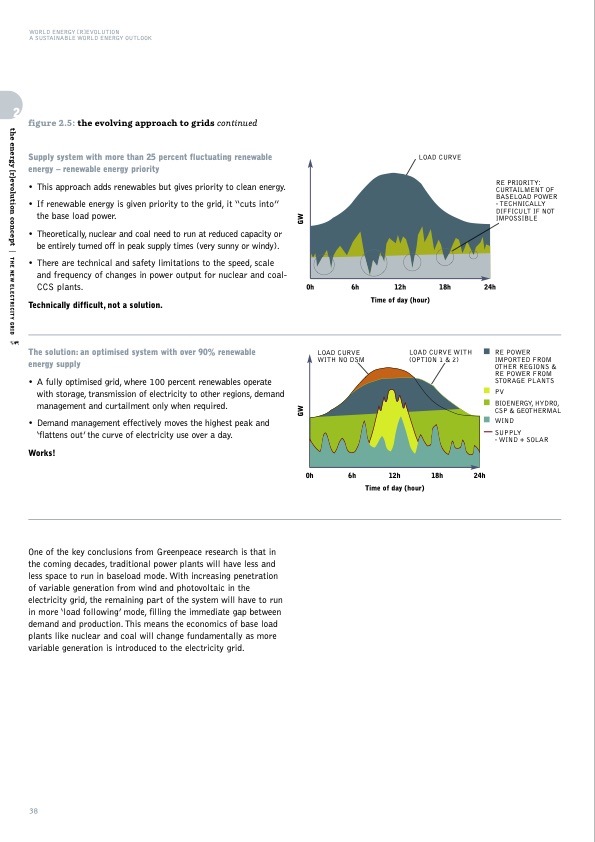

WORLD ENERGY [R]EVOLUTION A SUSTAINABLE WORLD ENERGY OUTLOOK 2 figure 2.5: the evolving approach to grids continued Supply system with more than 25 percent fluctuating renewable energy – renewable energy priority • This approach adds renewables but gives priority to clean energy. • If renewable energy is given priority to the grid, it “cuts into” the base load power. • Theoretically, nuclear and coal need to run at reduced capacity or be entirely turned off in peak supply times (very sunny or windy). • There are technical and safety limitations to the speed, scale and frequency of changes in power output for nuclear and coal- CCS plants. Technically difficult, not a solution. The solution: an optimised system with over 90% renewable energy supply • A fully optimised grid, where 100 percent renewables operate with storage, transmission of electricity to other regions, demand management and curtailment only when required. • Demand management effectively moves the highest peak and ‘flattens out’ the curve of electricity use over a day. LOAD CURVE 0h 6h 12h Time of day (hour) 18h RE PRIORITY: CURTAILMENT OF BASELOAD POWER - TECHNICALLY DIFFICULT IF NOT IMPOSSIBLE 24h RE POWER IMPORTED FROM OTHER REGIONS & RE POWER FROM STORAGE PLANTS PV BIOENERGY, HYDRO, CSP & GEOTHERMAL WIND SUPPLY - WIND + SOLAR Works! One of the key conclusions from Greenpeace research is that in the coming decades, traditional power plants will have less and less space to run in baseload mode. With increasing penetration of variable generation from wind and photovoltaic in the electricity grid, the remaining part of the system will have to run in more ‘load following’ mode, filling the immediate gap between demand and production.This means the economics of base load plants like nuclear and coal will change fundamentally as more variable generation is introduced to the electricity grid. LOAD CURVE WITH NO DSM 0h 6h LOAD CURVE WITH (OPTION 1 & 2) 12h 18h Time of day (hour) 24h 38 the energy [r]evolution concept | THE NEW ELECTRICITY GRID GW GWPDF Image | SUSTAINABLE WORLD ENERGY OUTLOOK
