PDF Publication Title:
Text from PDF Page: 143

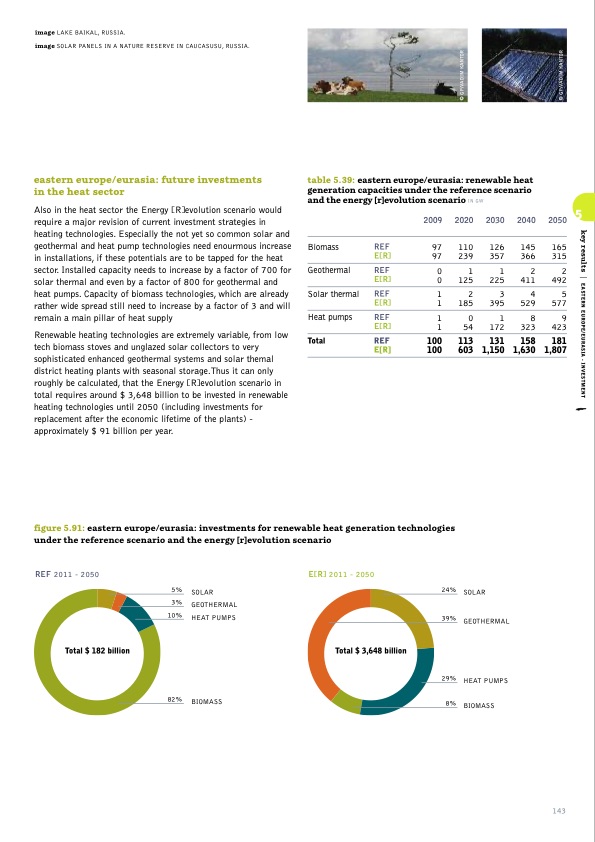

image LAKE BAIKAL, RUSSIA. image SOLAR PANELS IN A NATURE RESERVE IN CAUCASUSU, RUSSIA. eastern europe/eurasia: future investments in the heat sector Also in the heat sector the Energy [R]evolution scenario would require a major revision of current investment strategies in heating technologies. Especially the not yet so common solar and geothermal and heat pump technologies need enourmous increase in installations, if these potentials are to be tapped for the heat sector. Installed capacity needs to increase by a factor of 700 for solar thermal and even by a factor of 800 for geothermal and heat pumps. Capacity of biomass technologies, which are already rather wide spread still need to increase by a factor of 3 and will remain a main pillar of heat supply Renewable heating technologies are extremely variable, from low tech biomass stoves and unglazed solar collectors to very sophisticated enhanced geothermal systems and solar themal district heating plants with seasonal storage.Thus it can only roughly be calculated, that the Energy [R]evolution scenario in total requires around $ 3,648 billion to be invested in renewable heating technologies until 2050 (including investments for replacement after the economic lifetime of the plants) - approximately $ 91 billion per year. table 5.39: eastern europe/eurasia: renewable heat generation capacities under the reference scenario and the energy [r]evolution scenario IN GW figure 5.91: eastern europe/eurasia: investments for renewable heat generation technologies under the reference scenario and the energy [r]evolution scenario REF 2011 - 2050 Total $ 182 billion 5% SOLAR 3% GEOTHERMAL 10% HEAT PUMPS 82% BIOMASS E[R] 2011 - 2050 Total $ 3,648 billion 24% SOLAR 39% GEOTHERMAL 29% HEAT PUMPS 8% BIOMASS 2009 2020 110 239 1 125 2 185 0 54 113 603 2030 2040 2050 5 126 145 165 357 366 315 1 2 2 225 411 492 3 4 5 395 529 577 1 8 9 172 323 423 131 158 181 1,150 1,630 1,807 Biomass REF E[R] 97 Geothermal Solar thermal Heat pumps Total 97 REF 0 E[R] 0 REF 1 E[R] 1 REF 1 E[R] 1 REF 100 E[R] 100 143 © GP/VADIM KANTOR © GP/VADIM KANTOR key results | EASTERN EUROPE/EURASIA - INVESTMENTPDF Image | SUSTAINABLE WORLD ENERGY OUTLOOK
PDF Search Title:
SUSTAINABLE WORLD ENERGY OUTLOOKOriginal File Name Searched:
ER2012.pdfDIY PDF Search: Google It | Yahoo | Bing
