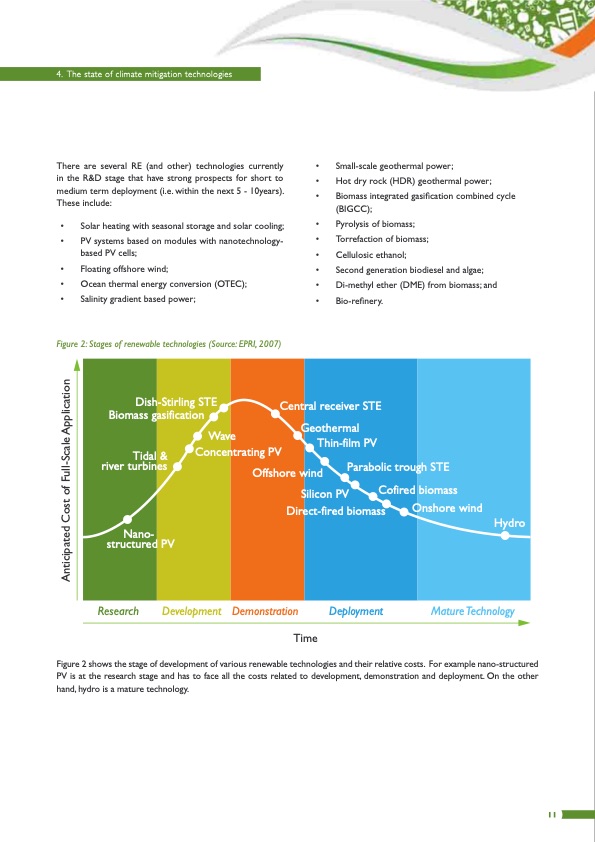

4. The state of climate mitigation technologies Dish-Stirling STE Biomass gasification Tidal & river turbines Nano- structured PV Central receiver STE Geothermal Wave Concentrating PV Thin-film PV Offshore wind Parabolic trough STE Onshore wind Hydro Silicon PV Direct-fired biomass Cofired biomass Research Development Demonstration Deployment Mature Technology Time There are several RE (and other) technologies currently in the R&D stage that have strong prospects for short to medium term deployment (i.e. within the next 5 - 10years). These include: • Solar heating with seasonal storage and solar cooling; • PV systems based on modules with nanotechnology- based PV cells; • Floating offshore wind; • Ocean thermal energy conversion (OTEC); • Salinity gradient based power; Figure 2: Stages of renewable technologies (Source: EPRI, 2007) • Small-scale geothermal power; • Hot dry rock (HDR) geothermal power; • Biomass integrated gasification combined cycle (BIGCC); • Pyrolysis of biomass; • Torrefaction of biomass; • Cellulosic ethanol; • Second generation biodiesel and algae; • Di-methyl ether (DME) from biomass; and • Bio-refinery. Figure 2 shows the stage of development of various renewable technologies and their relative costs. For example nano-structured PV is at the research stage and has to face all the costs related to development, demonstration and deployment. On the other hand, hydro is a mature technology. 11 Anticipated Cost of Full-Scale ApplicationPDF Image | The Green Machine 4000
