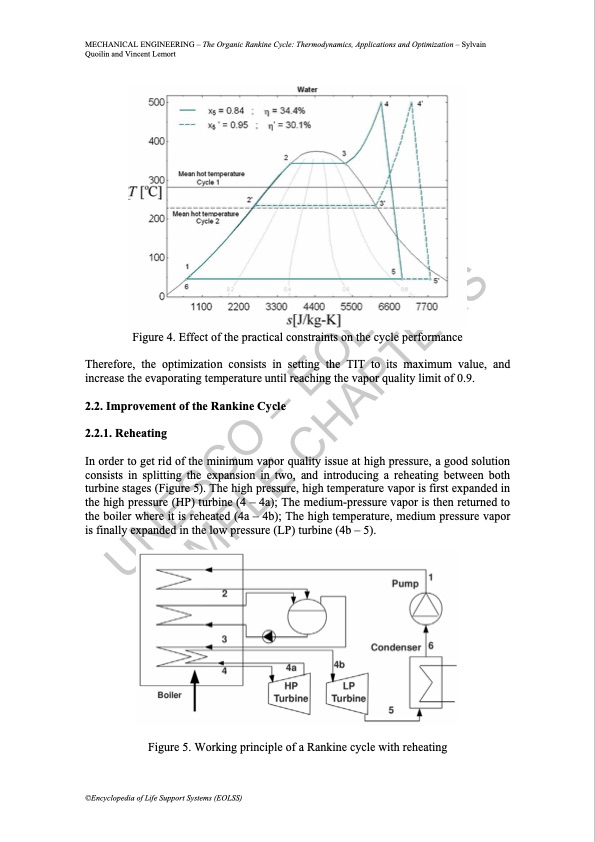

MECHANICAL ENGINEERING – The Organic Rankine Cycle: Thermodynamics, Applications and Optimization – Sylvain Quoilin and Vincent Lemort Figure 4. Effect of the practical constraints on the cycle performance Therefore, the optimization consists in setting the TIT to its maximum value, and increase the evaporating temperature until reaching the vapor quality limit of 0.9. 2.2. Improvement of the Rankine Cycle 2.2.1. Reheating In order to get rid of the minimum vapor quality issue at high pressure, a good solution consists in splitting the expansion in two, and introducing a reheating between both turbine stages (Figure 5). The high pressure, high temperature vapor is first expanded in the high pressure (HP) turbine (4 – 4a); The medium-pressure vapor is then returned to the boiler where it is reheated (4a – 4b); The high temperature, medium pressure vapor is finally expanded in the low pressure (LP) turbine (4b – 5). Figure 5. Working principle of a Rankine cycle with reheating ©Encyclopedia of Life Support Systems (EOLSS) UNESCO – EOLSS SAMPLE CHAPTERSPDF Image | The Organic Rankine Cycle
