Text from PDF Page: 026

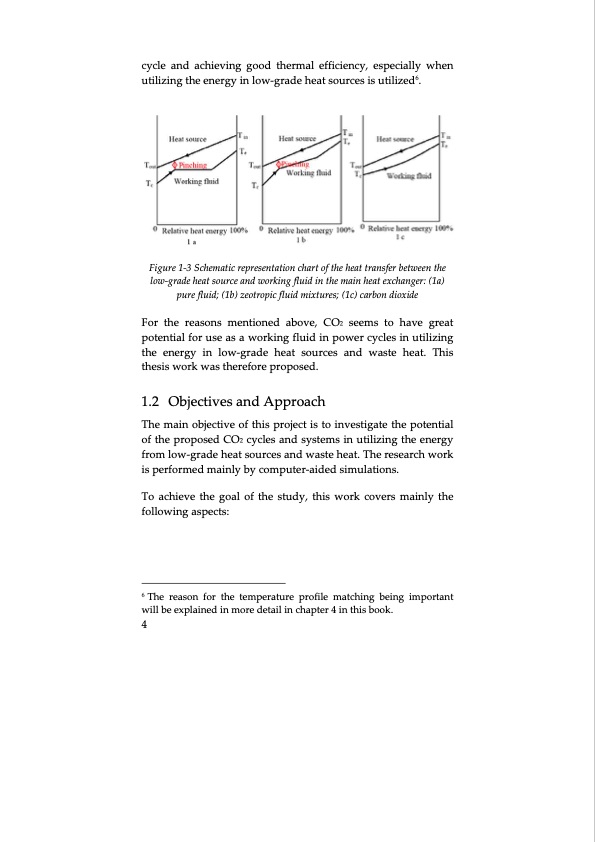

cycle and achieving good thermal efficiency, especially when utilizing the energy in low‐grade heat sources is utilized6. Figure 1‐3 Schematic representation chart of the heat transfer between the low‐grade heat source and working fluid in the main heat exchanger: (1a) pure fluid; (1b) zeotropic fluid mixtures; (1c) carbon dioxide For the reasons mentioned above, CO2 seems to have great potential for use as a working fluid in power cycles in utilizing the energy in low‐grade heat sources and waste heat. This thesis work was therefore proposed. 1.2 Objectives and Approach The main objective of this project is to investigate the potential of the proposed CO2 cycles and systems in utilizing the energy from low‐grade heat sources and waste heat. The research work is performed mainly by computer‐aided simulations. To achieve the goal of the study, this work covers mainly the following aspects: 6 The reason for the temperature profile matching being important will be explained in more detail in chapter 4 in this book. 4PDF Image | Thermodynamic Cycles using Carbon Dioxide
