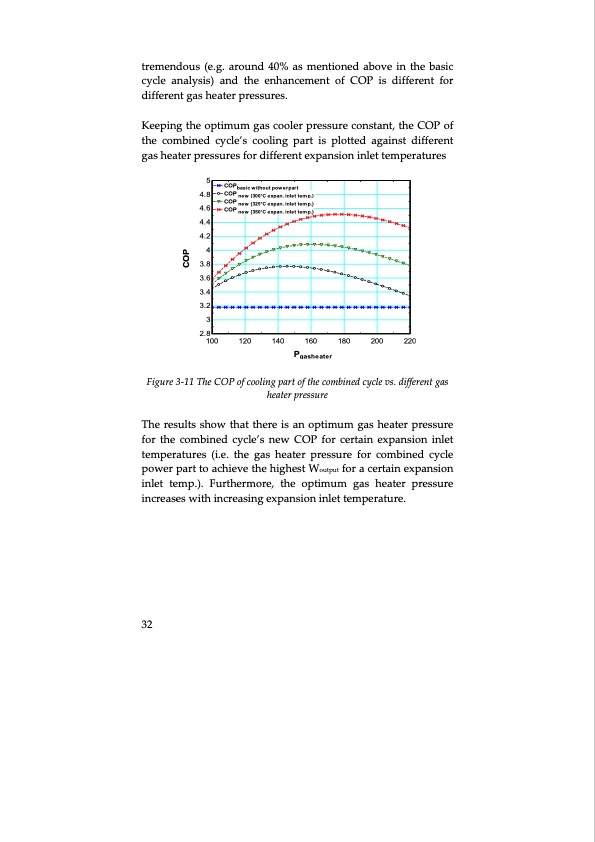

tremendous (e.g. around 40% as mentioned above in the basic cycle analysis) and the enhancement of COP is different for different gas heater pressures. Keeping the optimum gas cooler pressure constant, the COP of the combined cycle’s cooling part is plotted against different gas heater pressures for different expansion inlet temperatures 5 4.8 4.6 4.4 4.2 4 3.8 3.6 3.4 3.2 3 2.8 100 120 140 160 180 200 220 Pgasheater COPbasic without powerpart COP new (300°C expan. inlet temp.) COP new (325°C expan. inlet temp.) COP new (350°C expan. inlet temp.) Figure 3‐11 The COP of cooling part of the combined cycle vs. different gas heater pressure The results show that there is an optimum gas heater pressure for the combined cycle’s new COP for certain expansion inlet temperatures (i.e. the gas heater pressure for combined cycle power part to achieve the highest Woutput for a certain expansion inlet temp.). Furthermore, the optimum gas heater pressure increases with increasing expansion inlet temperature. 32 COPPDF Image | Thermodynamic Cycles using Carbon Dioxide
