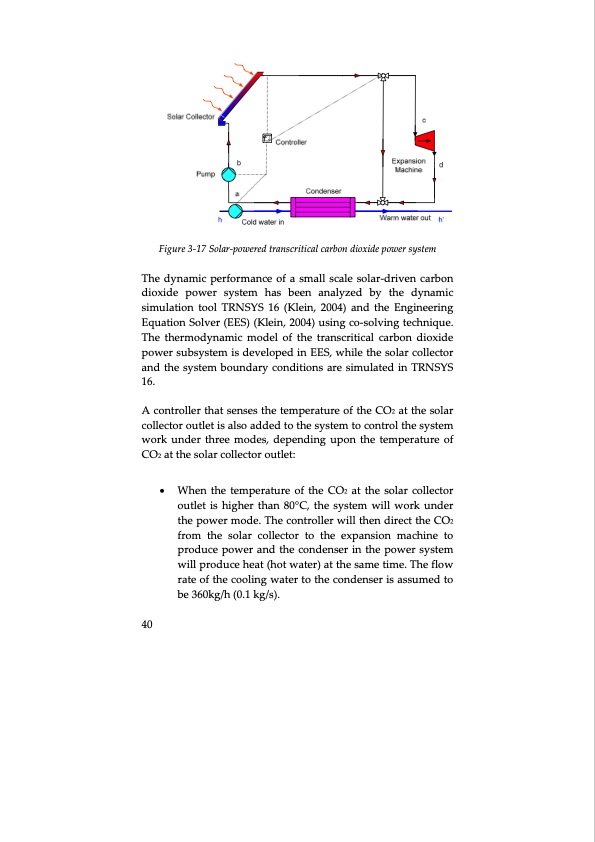

Figure 3‐17 Solar‐powered transcritical carbon dioxide power system The dynamic performance of a small scale solar‐driven carbon dioxide power system has been analyzed by the dynamic simulation tool TRNSYS 16 (Klein, 2004) and the Engineering Equation Solver (EES) (Klein, 2004) using co‐solving technique. The thermodynamic model of the transcritical carbon dioxide power subsystem is developed in EES, while the solar collector and the system boundary conditions are simulated in TRNSYS 16. A controller that senses the temperature of the CO2 at the solar collector outlet is also added to the system to control the system work under three modes, depending upon the temperature of CO2 at the solar collector outlet: When the temperature of the CO2 at the solar collector outlet is higher than 80°C, the system will work under the power mode. The controller will then direct the CO2 from the solar collector to the expansion machine to produce power and the condenser in the power system will produce heat (hot water) at the same time. The flow rate of the cooling water to the condenser is assumed to be 360kg/h (0.1 kg/s). 40PDF Image | Thermodynamic Cycles using Carbon Dioxide
