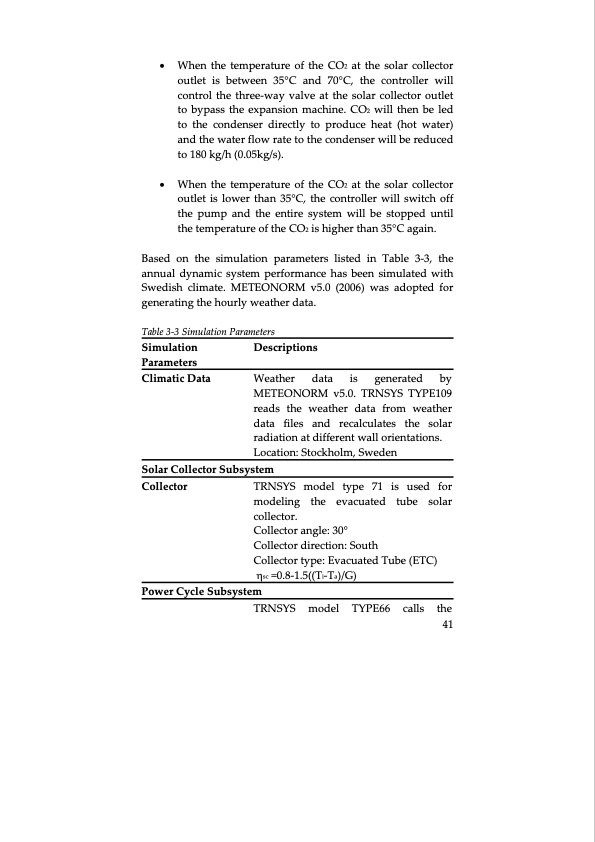

When the temperature of the CO2 at the solar collector outlet is between 35°C and 70°C, the controller will control the three‐way valve at the solar collector outlet to bypass the expansion machine. CO2 will then be led to the condenser directly to produce heat (hot water) and the water flow rate to the condenser will be reduced to 180 kg/h (0.05kg/s). When the temperature of the CO2 at the solar collector outlet is lower than 35°C, the controller will switch off the pump and the entire system will be stopped until the temperature of the CO2 is higher than 35°C again. Based on the simulation parameters listed in Table 3‐3, the annual dynamic system performance has been simulated with Swedish climate. METEONORM v5.0 (2006) was adopted for generating the hourly weather data. Table 3‐3 Simulation Parameters Simulation Parameters Climatic Data Descriptions Weather data is generated by METEONORM v5.0. TRNSYS TYPE109 reads the weather data from weather data files and recalculates the solar radiation at different wall orientations. Location: Stockholm, Sweden Solar Collector Subsystem Collector TRNSYS model type 71 is used for modeling the evacuated tube solar collector. Collector angle: 30° Collector direction: South Collector type: Evacuated Tube (ETC) sc =0.8‐1.5((Ti‐Ta)/G) Power Cycle Subsystem TRNSYS model TYPE66 calls the 41PDF Image | Thermodynamic Cycles using Carbon Dioxide
