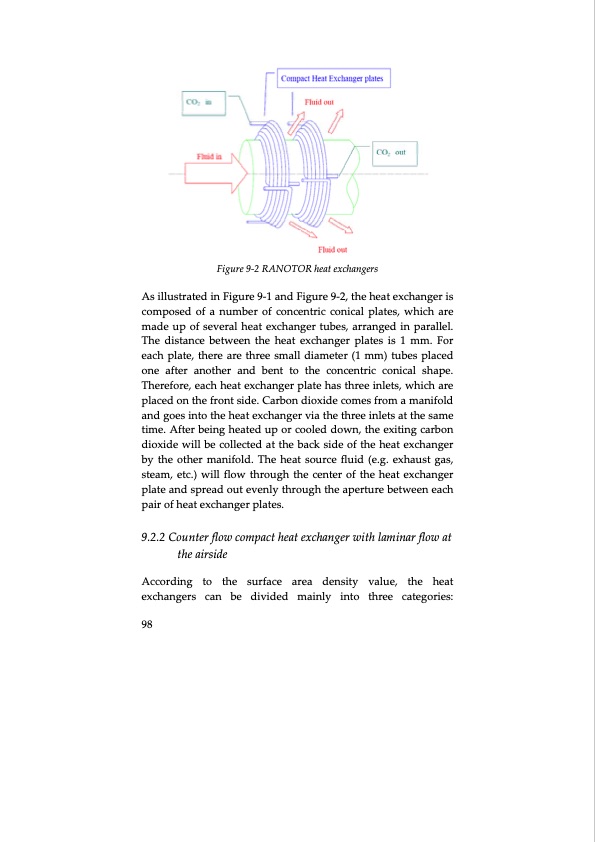

Figure 9‐2 RANOTOR heat exchangers As illustrated in Figure 9‐1 and Figure 9‐2, the heat exchanger is composed of a number of concentric conical plates, which are made up of several heat exchanger tubes, arranged in parallel. The distance between the heat exchanger plates is 1 mm. For each plate, there are three small diameter (1 mm) tubes placed one after another and bent to the concentric conical shape. Therefore, each heat exchanger plate has three inlets, which are placed on the front side. Carbon dioxide comes from a manifold and goes into the heat exchanger via the three inlets at the same time. After being heated up or cooled down, the exiting carbon dioxide will be collected at the back side of the heat exchanger by the other manifold. The heat source fluid (e.g. exhaust gas, steam, etc.) will flow through the center of the heat exchanger plate and spread out evenly through the aperture between each pair of heat exchanger plates. 9.2.2 Counter flow compact heat exchanger with laminar flow at the airside According to the surface area density value, the heat exchangers can be divided mainly into three categories: 98
