PDF Publication Title:
Text from PDF Page: 014

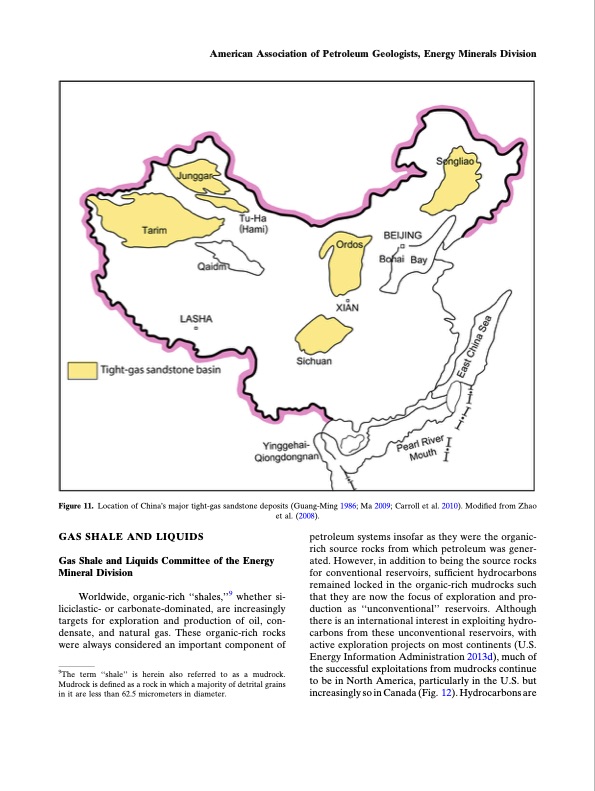

GAS SHALE AND LIQUIDS Gas Shale and Liquids Committee of the Energy Mineral Division Worldwide, organic-rich ‘‘shales,’’9 whether si- liciclastic- or carbonate-dominated, are increasingly targets for exploration and production of oil, con- densate, and natural gas. These organic-rich rocks were always considered an important component of 9The term ‘‘shale’’ is herein also referred to as a mudrock. Mudrock is defined as a rock in which a majority of detrital grains in it are less than 62.5 micrometers in diameter. petroleum systems insofar as they were the organic- rich source rocks from which petroleum was gener- ated. However, in addition to being the source rocks for conventional reservoirs, sufficient hydrocarbons remained locked in the organic-rich mudrocks such that they are now the focus of exploration and pro- duction as ‘‘unconventional’’ reservoirs. Although there is an international interest in exploiting hydro- carbons from these unconventional reservoirs, with active exploration projects on most continents (U.S. Energy Information Administration 2013d), much of the successful exploitations from mudrocks continue to be in North America, particularly in the U.S. but increasingly so in Canada (Fig. 12). Hydrocarbons are American Association of Petroleum Geologists, Energy Minerals Division Figure 11. Location of ChinaÕs major tight-gas sandstone deposits (Guang-Ming 1986; Ma 2009; Carroll et al. 2010). Modified from Zhao et al. (2008).PDF Image | Unconventional Energy Resources
