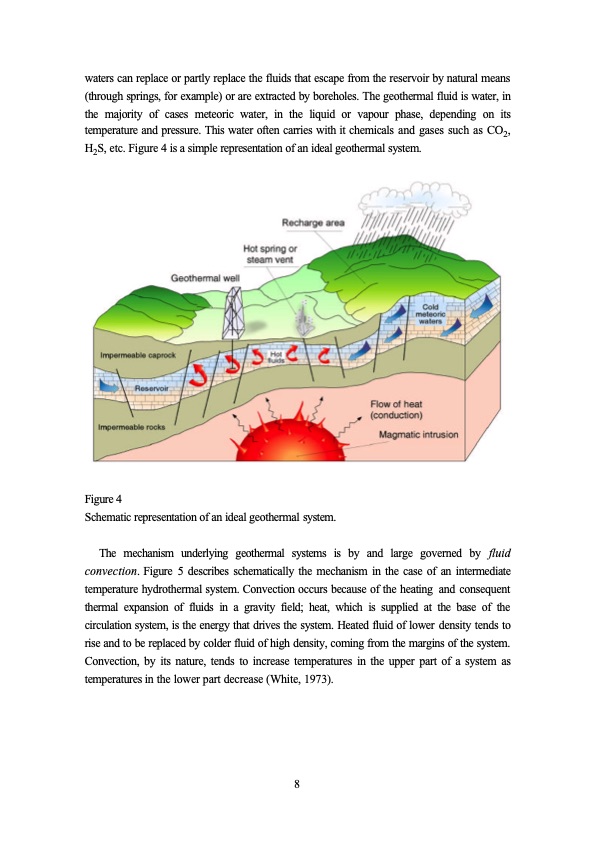

waters can replace or partly replace the fluids that escape from the reservoir by natural means (through springs, for example) or are extracted by boreholes. The geothermal fluid is water, in the majority of cases meteoric water, in the liquid or vapour phase, depending on its temperature and pressure. This water often carries with it chemicals and gases such as CO2, H2S, etc. Figure 4 is a simple representation of an ideal geothermal system. Figure 4 Schematic representation of an ideal geothermal system. The mechanism underlying geothermal systems is by and large governed by fluid convection. Figure 5 describes schematically the mechanism in the case of an intermediate temperature hydrothermal system. Convection occurs because of the heating and consequent thermal expansion of fluids in a gravity field; heat, which is supplied at the base of the circulation system, is the energy that drives the system. Heated fluid of lower density tends to rise and to be replaced by colder fluid of high density, coming from the margins of the system. Convection, by its nature, tends to increase temperatures in the upper part of a system as temperatures in the lower part decrease (White, 1973). 8PDF Image | What is geothermal energy
