PDF Publication Title:
Text from PDF Page: 105

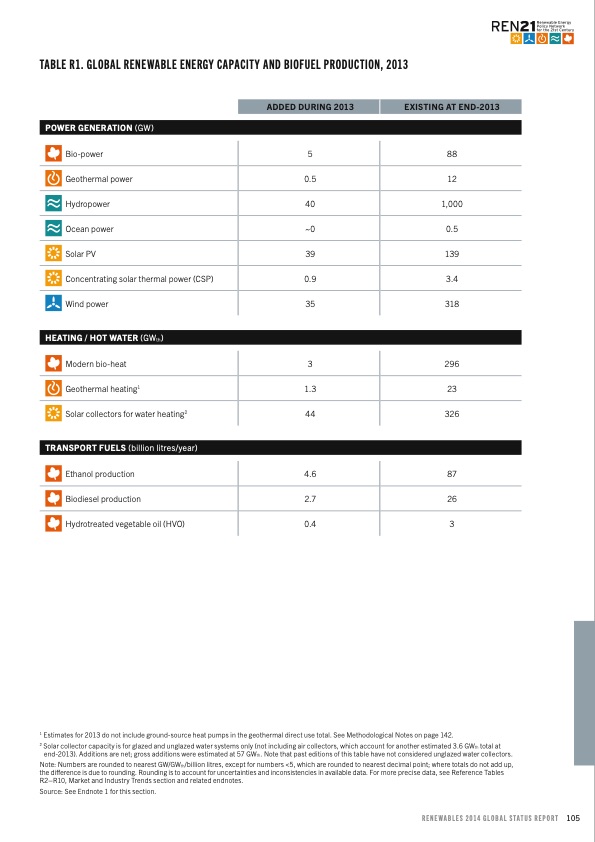

TABLE R1. GLOBAL RENEWABLE ENERGY CAPACITY AND BIOFUEL PRODUCTION, 2013 POWER GENERATION (GW) Bio-power ADDED DURING 2013 5 EXISTING AT END-2013 88 Geothermal power 0.5 12 Hydropower 40 1,000 Ocean power ~0 0.5 Solar PV 39 139 Concentrating solar thermal power (CSP) 0.9 3.4 Wind power HEATING / HOT WATER (GWth) Modern bio-heat 35 3 318 296 Geothermal heating1 1.3 23 Solar collectors for water heating2 TRANSPORT FUELS (billion litres/year) Ethanol production 44 4.6 326 87 Biodiesel production 2.7 26 Hydrotreated vegetable oil (HVO) 0.4 3 1 Estimates for 2013 do not include ground-source heat pumps in the geothermal direct use total. See Methodological Notes on page 142. 2 Solar collector capacity is for glazed and unglazed water systems only (not including air collectors, which account for another estimated 3.6 GWth total at end-2013). Additions are net; gross additions were estimated at 57 GWth. Note that past editions of this table have not considered unglazed water collectors. Note: Numbers are rounded to nearest GW/GWth/billion litres, except for numbers <5, which are rounded to nearest decimal point; where totals do not add up, the difference is due to rounding. Rounding is to account for uncertainties and inconsistencies in available data. For more precise data, see Reference Tables R2–R10, Market and Industry Trends section and related endnotes. Source: See Endnote 1 for this section. RENEWABLES 2014 GLOBAL STATUS REPORT 105PDF Image | About ElectraTherm
