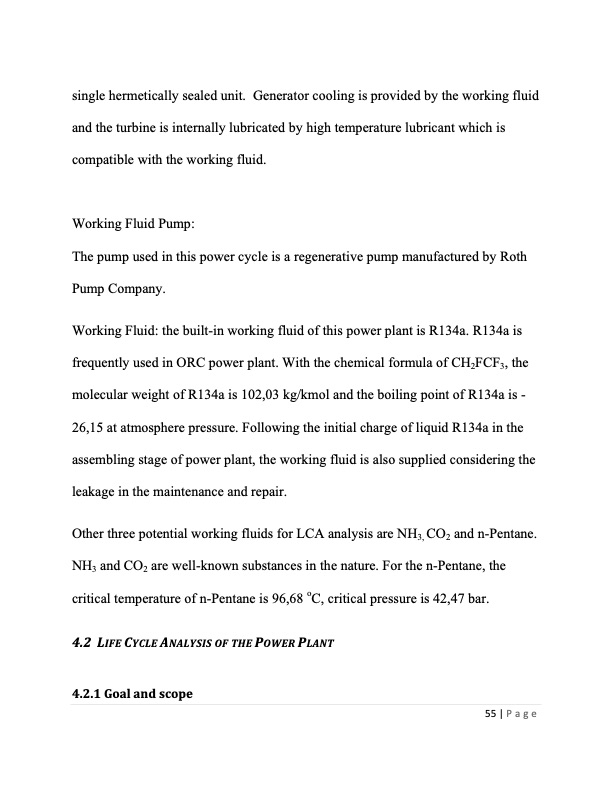

single hermetically sealed unit. Generator cooling is provided by the working fluid and the turbine is internally lubricated by high temperature lubricant which is compatible with the working fluid. Working Fluid Pump: The pump used in this power cycle is a regenerative pump manufactured by Roth Pump Company. Working Fluid: the built-in working fluid of this power plant is R134a. R134a is frequently used in ORC power plant. With the chemical formula of CH2FCF3, the molecular weight of R134a is 102,03 kg/kmol and the boiling point of R134a is - 26,15 at atmosphere pressure. Following the initial charge of liquid R134a in the assembling stage of power plant, the working fluid is also supplied considering the leakage in the maintenance and repair. Other three potential working fluids for LCA analysis are NH3, CO2 and n-Pentane. NH3 and CO2 are well-known substances in the nature. For the n-Pentane, the critical temperature of n-Pentane is 96,68 oC, critical pressure is 42,47 bar. 4.2 LIFE CYCLE ANALYSIS OF THE POWER PLANT 4.2.1 Goal and scope 55 | P a g ePDF Image | Electricity Generation from Low Temperature Waste Heat
