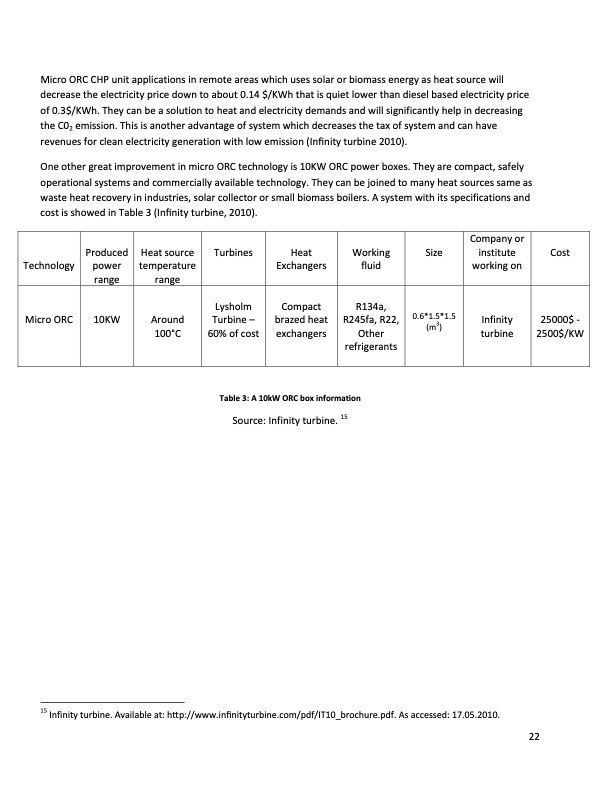

Micro ORC CHP unit applications in remote areas which uses solar or biomass energy as heat source will decrease the electricity price down to about 0.14 $/KWh that is quiet lower than diesel based electricity price of 0.3$/KWh. They can be a solution to heat and electricity demands and will significantly help in decreasing the C02 emission. This is another advantage of system which decreases the tax of system and can have revenues for clean electricity generation with low emission (Infinity turbine 2010). One other great improvement in micro ORC technology is 10KW ORC power boxes. They are compact, safely operational systems and commercially available technology. They can be joined to many heat sources same as waste heat recovery in industries, solar collector or small biomass boilers. A system with its specifications and cost is showed in Table 3 (Infinity turbine, 2010). Technology Produced power range Heat source temperature range Turbines Heat Exchangers Working fluid Size Company or institute working on Cost Micro ORC 10KW Around 100°C Lysholm Turbine – 60% of cost Compact brazed heat exchangers R134a, R245fa, R22, Other refrigerants 0.6*1.5*1.5 (m3) Infinity turbine 25000$ ‐ 2500$/KW Table 3: A 10kW ORC box information Source: Infinity turbine. 15 15 Infinity turbine. Available at: http://www.infinityturbine.com/pdf/IT10_brochure.pdf. As accessed: 17.05.2010. 22PDF Image | Exergy
