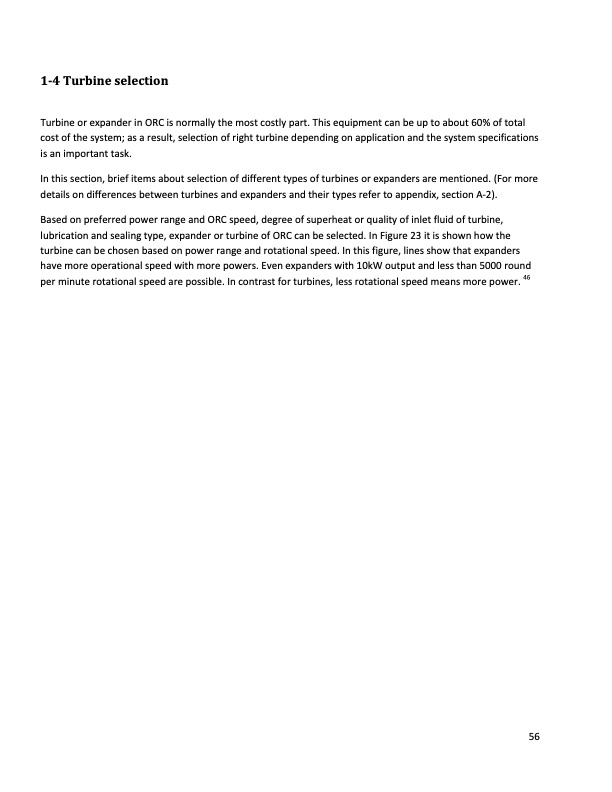

14 Turbine selection Turbine or expander in ORC is normally the most costly part. This equipment can be up to about 60% of total cost of the system; as a result, selection of right turbine depending on application and the system specifications is an important task. In this section, brief items about selection of different types of turbines or expanders are mentioned. (For more details on differences between turbines and expanders and their types refer to appendix, section A‐2). Based on preferred power range and ORC speed, degree of superheat or quality of inlet fluid of turbine, lubrication and sealing type, expander or turbine of ORC can be selected. In Figure 23 it is shown how the turbine can be chosen based on power range and rotational speed. In this figure, lines show that expanders have more operational speed with more powers. Even expanders with 10kW output and less than 5000 round per minute rotational speed are possible. In contrast for turbines, less rotational speed means more power. 46 56PDF Image | Exergy
