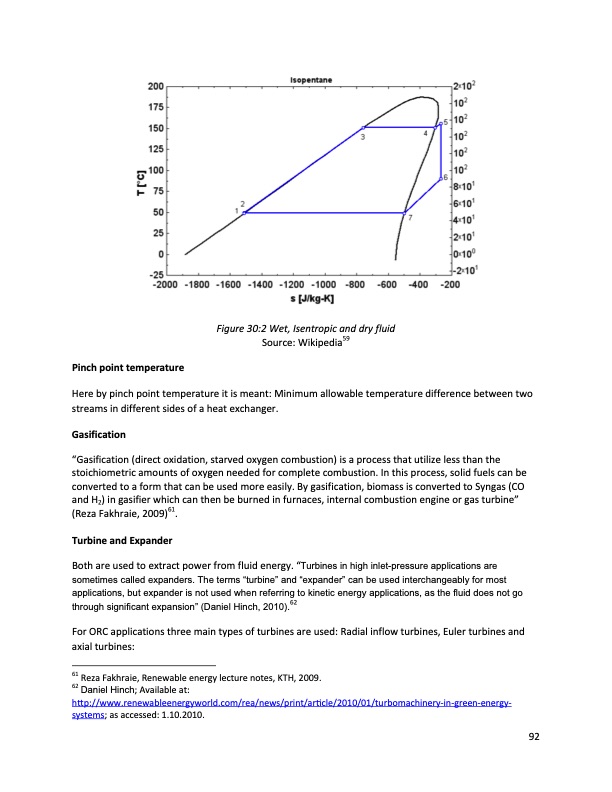

Pinch point temperature Figure 30:2 Wet, Isentropic and dry fluid Source: Wikipedia59 Here by pinch point temperature it is meant: Minimum allowable temperature difference between two streams in different sides of a heat exchanger. Gasification “Gasification (direct oxidation, starved oxygen combustion) is a process that utilize less than the stoichiometric amounts of oxygen needed for complete combustion. In this process, solid fuels can be converted to a form that can be used more easily. By gasification, biomass is converted to Syngas (CO and H2) in gasifier which can then be burned in furnaces, internal combustion engine or gas turbine” (Reza Fakhraie, 2009)61. Turbine and Expander Both are used to extract power from fluid energy. “Turbines in high inlet-pressure applications are sometimes called expanders. The terms “turbine” and “expander” can be used interchangeably for most applications, but expander is not used when referring to kinetic energy applications, as the fluid does not go through significant expansion” (Daniel Hinch, 2010).62 For ORC applications three main types of turbines are used: Radial inflow turbines, Euler turbines and axial turbines: 61 Reza Fakhraie, Renewable energy lecture notes, KTH, 2009. 62 Daniel Hinch; Available at: http://www.renewableenergyworld.com/rea/news/print/article/2010/01/turbomachinery‐in‐green‐energy‐ systems; as accessed: 1.10.2010. 92PDF Image | Exergy
