PDF Publication Title:
Text from PDF Page: 010

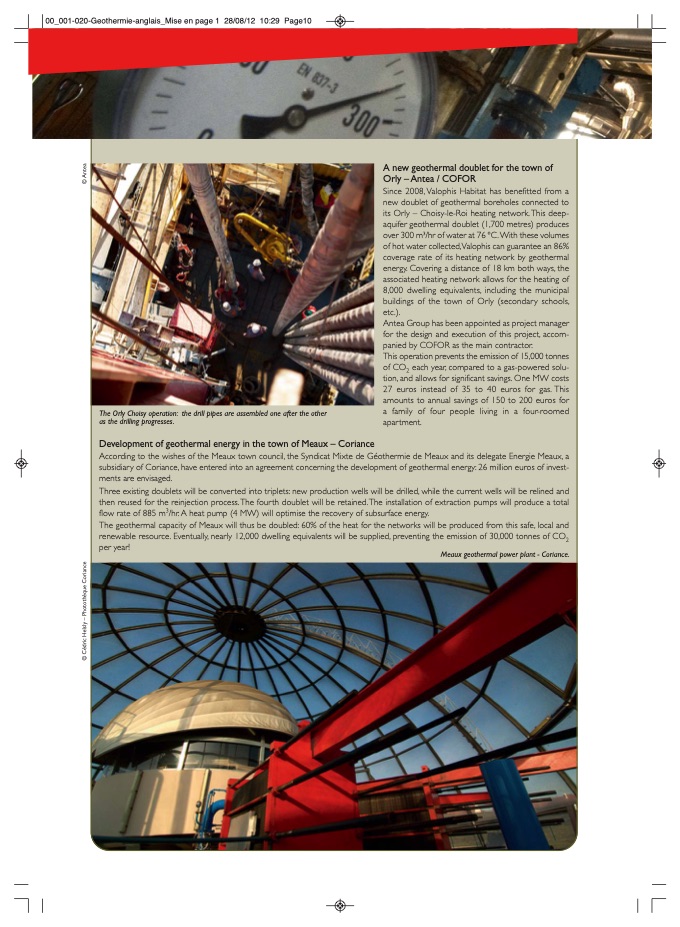

The Orly Choisy operation: the drill pipes are assembled one after the other as the drilling progresses. Development of geothermal energy in the town of Meaux – Coriance A new geothermal doublet for the town of Orly – Antea / COFOR Since 2008,Valophis Habitat has benefitted from a new doublet of geothermal boreholes connected to its Orly – Choisy-le-Roi heating network.This deep- aquifer geothermal doublet (1,700 metres) produces over 300 m3/hr of water at 76 °C.With these volumes of hot water collected,Valophis can guarantee an 86% coverage rate of its heating network by geothermal energy. Covering a distance of 18 km both ways, the associated heating network allows for the heating of 8,000 dwelling equivalents, including the municipal buildings of the town of Orly (secondary schools, etc.). Antea Group has been appointed as project manager for the design and execution of this project, accom- panied by COFOR as the main contractor. This operation prevents the emission of 15,000 tonnes of CO2 each year, compared to a gas-powered solu- tion, and allows for significant savings. One MW costs 27 euros instead of 35 to 40 euros for gas. This amounts to annual savings of 150 to 200 euros for a family of four people living in a four-roomed apar tment. According to the wishes of the Meaux town council, the Syndicat Mixte de Géothermie de Meaux and its delegate Energie Meaux, a subsidiary of Coriance, have entered into an agreement concerning the development of geothermal energy: 26 million euros of invest- ments are envisaged. Three existing doublets will be converted into triplets: new production wells will be drilled, while the current wells will be relined and then reused for the reinjection process.The fourth doublet will be retained.The installation of extraction pumps will produce a total flow rate of 885 m3/hr.A heat pump (4 MW) will optimise the recovery of subsurface energy. The geothermal capacity of Meaux will thus be doubled: 60% of the heat for the networks will be produced from this safe, local and renewable resource. Eventually, nearly 12,000 dwelling equivalents will be supplied, preventing the emission of 30,000 tonnes of CO2 per year! Meaux geothermal power plant - Coriance. © Cédric Helsly – Photothèque Coriance © AnteaPDF Image | GEOTHERMAL ENERGY District heating
