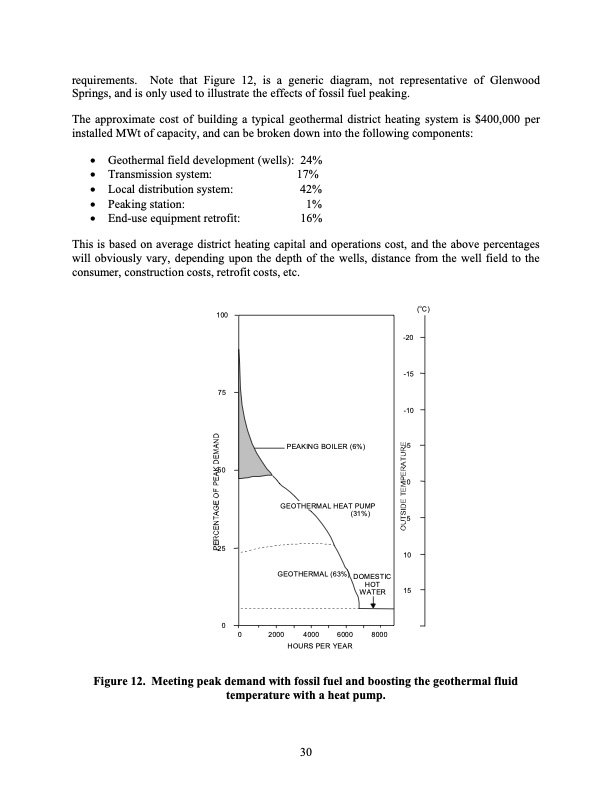

requirements. Note that Figure 12, is a generic diagram, not representative of Glenwood Springs, and is only used to illustrate the effects of fossil fuel peaking. The approximate cost of building a typical geothermal district heating system is $400,000 per installed MWt of capacity, and can be broken down into the following components: • Geothermal field development (wells): 24% • Transmission system: 17% • Local distribution system: 42% • Peaking station: 1% • End-use equipment retrofit: 16% This is based on average district heating capital and operations cost, and the above percentages will obviously vary, depending upon the depth of the wells, distance from the well field to the consumer, construction costs, retrofit costs, etc. (oC) -20 -15 -10 -5 0 5 10 15 Figure 12. Meeting peak demand with fossil fuel and boosting the geothermal fluid temperature with a heat pump. 100 75 50 25 PEAKING BOILER (6%) GEOTHERMAL HEAT PUMP (31%) GEOTHERMAL (63%) DOMESTIC HOT WATER 0 0 2000 4000 6000 8000 HOURS PER YEAR 30PDF Image | GEOTHERMAL RESOURCES GLENWOOD SPRINGS, COLORADO
