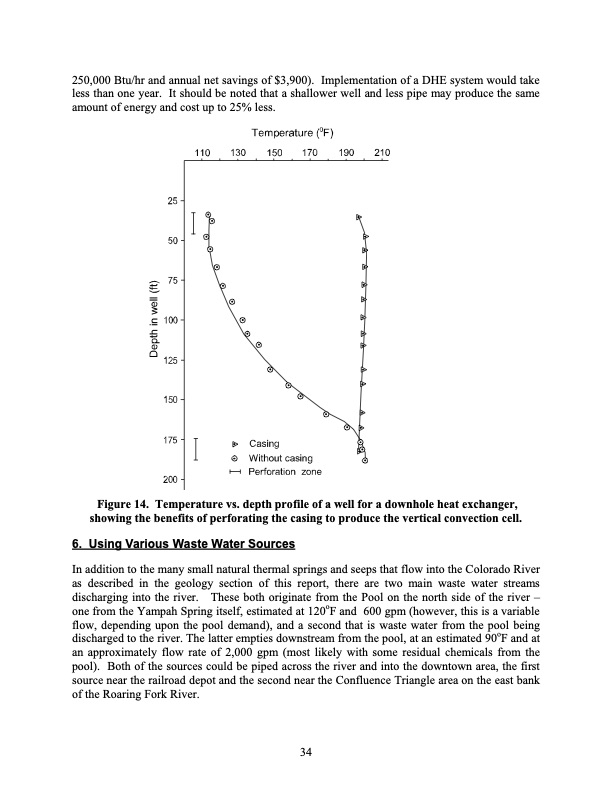

250,000 Btu/hr and annual net savings of $3,900). Implementation of a DHE system would take less than one year. It should be noted that a shallower well and less pipe may produce the same amount of energy and cost up to 25% less. Figure 14. Temperature vs. depth profile of a well for a downhole heat exchanger, showing the benefits of perforating the casing to produce the vertical convection cell. 6. Using Various Waste Water Sources In addition to the many small natural thermal springs and seeps that flow into the Colorado River as described in the geology section of this report, there are two main waste water streams discharging into the river. These both originate from the Pool on the north side of the river – one from the Yampah Spring itself, estimated at 120oF and 600 gpm (however, this is a variable flow, depending upon the pool demand), and a second that is waste water from the pool being discharged to the river. The latter empties downstream from the pool, at an estimated 90oF and at an approximately flow rate of 2,000 gpm (most likely with some residual chemicals from the pool). Both of the sources could be piped across the river and into the downtown area, the first source near the railroad depot and the second near the Confluence Triangle area on the east bank of the Roaring Fork River. 34PDF Image | GEOTHERMAL RESOURCES GLENWOOD SPRINGS, COLORADO
