PDF Publication Title:
Text from PDF Page: 012

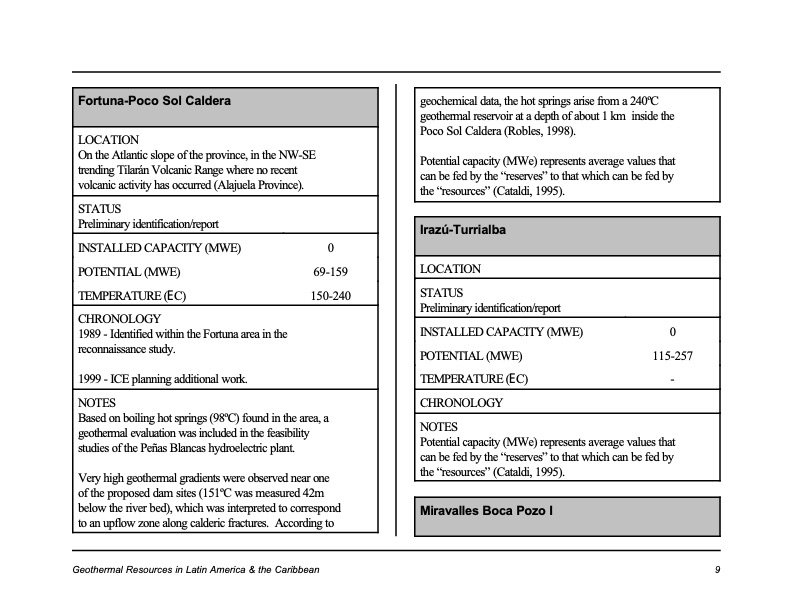

Fortuna-Poco Sol Caldera LOCATION On the Atlantic slope of the province, in the NW-SE trending Tilarán Volcanic Range where no recent volcanic activity has occurred (Alajuela Province). STATUS Preliminary identification/report geochemical data, the hot springs arise from a 240oC geothermalreservoiratadepthofabout1km insidethe Poco Sol Caldera (Robles, 1998). Potential capacity (MWe) represents average values that can be fed by the “reserves” to that which can be fed by the “resources” (Cataldi, 1995). INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 0 69-159 150-240 Irazú-Turrialba LOCATION INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) CHRONOLOGY CHRONOLOGY 1989 - Identified within the Fortuna area in the reconnaissance study. 1999 - ICE planning additional work. NOTES Based on boiling hot springs (98oC) found in the area, a geothermal evaluation was included in the feasibility studies of the Peñas Blancas hydroelectric plant. Very high geothermal gradients were observed near one of the proposed dam sites (151oC was measured 42m below the river bed), which was interpreted to correspond toanupflowzonealongcaldericfractures. Accordingto 0 115-257 - NOTES Potential capacity (MWe) represents average values that can be fed by the “reserves” to that which can be fed by the “resources” (Cataldi, 1995). Geothermal Resources in Latin America & the Caribbean 9 STATUS Preliminary identification/report Miravalles Boca Pozo IPDF Image | Geothermal Resources in the Caribbean and Latin America
