PDF Publication Title:
Text from PDF Page: 018

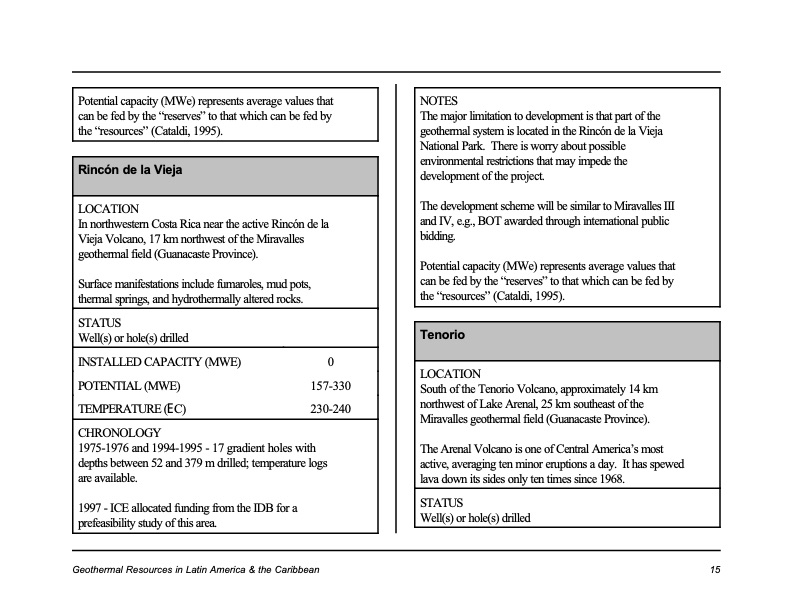

NOTES The major limitation to development is that part of the geothermal system is located in the Rincón de la Vieja NationalPark. Thereisworryaboutpossible environmental restrictions that may impede the development of the project. The development scheme will be similar to Miravalles III and IV, e.g., BOT awarded through international public bidding. Potential capacity (MWe) represents average values that can be fed by the “reserves” to that which can be fed by the “resources” (Cataldi, 1995). Potential capacity (MWe) represents average values that can be fed by the “reserves” to that which can be fed by the “resources” (Cataldi, 1995). Rincón de la Vieja LOCATION In northwestern Costa Rica near the active Rincón de la Vieja Volcano, 17 km northwest of the Miravalles geothermal field (Guanacaste Province). Surface manifestations include fumaroles, mud pots, thermal springs, and hydrothermally altered rocks. STATUS Well(s) or hole(s) drilled Tenorio LOCATION South of the Tenorio Volcano, approximately 14 km northwest of Lake Arenal, 25 km southeast of the Miravalles geothermal field (Guanacaste Province). The Arenal Volcano is one of Central America’s most active,averagingtenminoreruptionsaday. Ithasspewed lava down its sides only ten times since 1968. STATUS Well(s) or hole(s) drilled INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 0 157-330 230-240 CHRONOLOGY 1975-1976 and 1994-1995 - 17 gradient holes with depths between 52 and 379 m drilled; temperature logs are available. 1997 - ICE allocated funding from the IDB for a prefeasibility study of this area. Geothermal Resources in Latin America & the Caribbean 15PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
