PDF Publication Title:

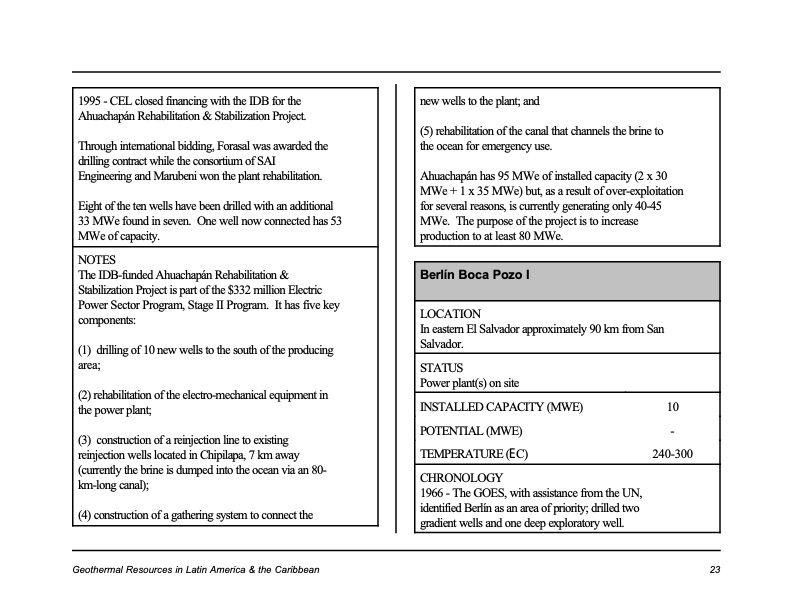

Text from PDF Page: 026
1995 - CEL closed financing with the IDB for the Ahuachapán Rehabilitation & Stabilization Project. Through international bidding, Forasal was awarded the drilling contract while the consortium of SAI Engineering and Marubeni won the plant rehabilitation. Eight of the ten wells have been drilled with an additional 33MWefoundinseven. Onewellnowconnectedhas53 MWe of capacity. NOTES The IDB-funded Ahuachapán Rehabilitation & Stabilization Project is part of the $332 million Electric PowerSectorProgram,StageIIProgram. Ithasfivekey components: (1) drillingof10newwellstothesouthoftheproducing area; (2) rehabilitation of the electro-mechanical equipment in the power plant; (3) constructionofareinjectionlinetoexisting reinjection wells located in Chipilapa, 7 km away (currently the brine is dumped into the ocean via an 80- km-long canal); (4) construction of a gathering system to connect the new wells to the plant; and (5) rehabilitation of the canal that channels the brine to the ocean for emergency use. Ahuachapán has 95 MWe of installed capacity (2 x 30 MWe + 1 x 35 MWe) but, as a result of over-exploitation for several reasons, is currently generating only 40-45 MWe. Thepurposeoftheprojectistoincrease production to at least 80 MWe. Berlín Boca Pozo I LOCATION In eastern El Salvador approximately 90 km from San Salvador. STATUS Power plant(s) on site INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 10 - 240-300 CHRONOLOGY 1966 - The GOES, with assistance from the UN, identified Berlín as an area of priority; drilled two gradient wells and one deep exploratory well. Geothermal Resources in Latin America & the Caribbean 23PDF Image | Geothermal Resources in the Caribbean and Latin America
