PDF Publication Title:
Text from PDF Page: 029

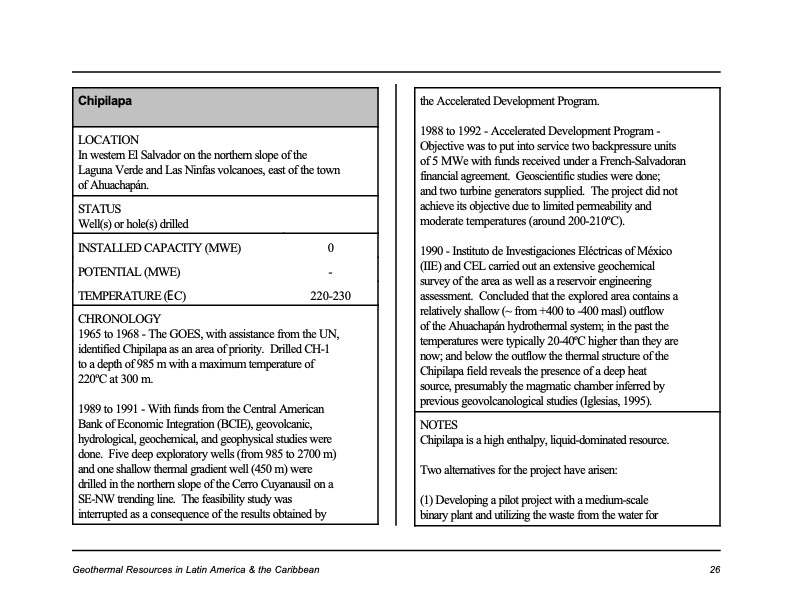

Chipilapa LOCATION In western El Salvador on the northern slope of the Laguna Verde and Las Ninfas volcanoes, east of the town of Ahuachapán. STATUS Well(s) or hole(s) drilled the Accelerated Development Program. 1988 to 1992 - Accelerated Development Program - Objective was to put into service two backpressure units of 5 MWe with funds received under a French-Salvadoran financialagreement. Geoscientificstudiesweredone; and two turbine generators supplied. The project did not achieve its objective due to limited permeability and moderate temperatures (around 200-210oC). 1990 - Instituto de Investigaciones Eléctricas of México (IIE) and CEL carried out an extensive geochemical survey of the area as well as a reservoir engineering assessment. Concludedthattheexploredareacontainsa relatively shallow (~ from +400 to -400 masl) outflow of the Ahuachapán hydrothermal system; in the past the temperatures were typically 20-40oC higher than they are now; and below the outflow the thermal structure of the Chipilapa field reveals the presence of a deep heat source, presumably the magmatic chamber inferred by previous geovolcanological studies (Iglesias, 1995). NOTES Chipilapa is a high enthalpy, liquid-dominated resource. Two alternatives for the project have arisen: (1) Developing a pilot project with a medium-scale binary plant and utilizing the waste from the water for INSTALLED CAPACITY (MWE) 0 POTENTIAL (MWE) - TEMPERATURE (EC) 220-230 CHRONOLOGY 1965 to 1968 - The GOES, with assistance from the UN, identifiedChipilapaasanareaofpriority. DrilledCH-1 to a depth of 985 m with a maximum temperature of 220oC at 300 m. 1989 to 1991 - With funds from the Central American Bank of Economic Integration (BCIE), geovolcanic, hydrological, geochemical, and geophysical studies were done. Fivedeepexploratorywells(from985to2700m) and one shallow thermal gradient well (450 m) were drilled in the northern slope of the Cerro Cuyanausil on a SE-NWtrendingline. Thefeasibilitystudywas interrupted as a consequence of the results obtained by Geothermal Resources in Latin America & the Caribbean 26PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
