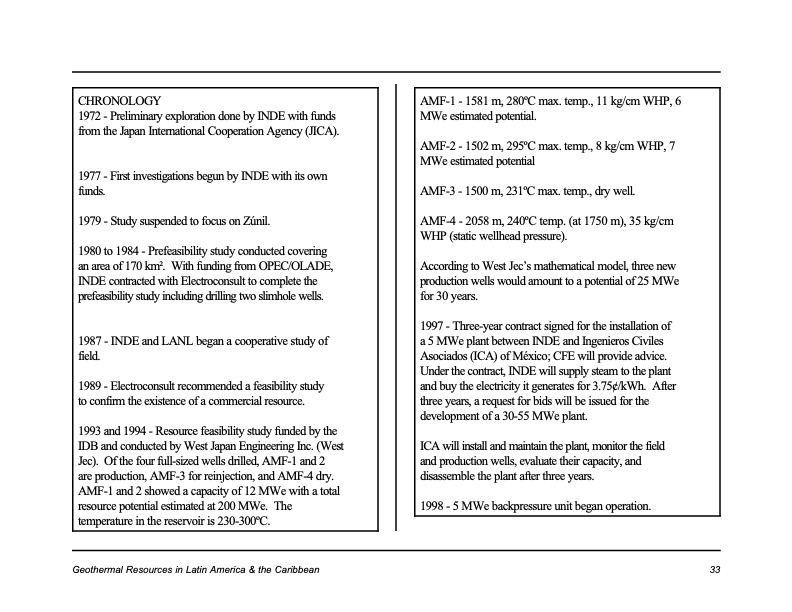

CHRONOLOGY 1972 - Preliminary exploration done by INDE with funds from the Japan International Cooperation Agency (JICA). 1977 - First investigations begun by INDE with its own funds. 1979 - Study suspended to focus on Zúnil. 1980 to 1984 - Prefeasibility study conducted covering anareaof170km2. WithfundingfromOPEC/OLADE, INDE contracted with Electroconsult to complete the prefeasibility study including drilling two slimhole wells. 1987 - INDE and LANL began a cooperative study of field. 1989 - Electroconsult recommended a feasibility study to confirm the existence of a commercial resource. 1993 and 1994 - Resource feasibility study funded by the IDB and conducted by West Japan Engineering Inc. (West Jec). Ofthefourfull-sizedwellsdrilled,AMF-1and2 are production, AMF-3 for reinjection, and AMF-4 dry. AMF-1 and 2 showed a capacity of 12 MWe with a total resourcepotentialestimatedat200MWe. The temperature in the reservoir is 230-300oC. AMF-1 - 1581 m, 280oC max. temp., 11 kg/cm WHP, 6 MWe estimated potential. AMF-2 - 1502 m, 295oC max. temp., 8 kg/cm WHP, 7 MWe estimated potential AMF-3 - 1500 m, 231oC max. temp., dry well. AMF-4 - 2058 m, 240oC temp. (at 1750 m), 35 kg/cm WHP (static wellhead pressure). According to West Jec’s mathematical model, three new production wells would amount to a potential of 25 MWe for 30 years. 1997 - Three-year contract signed for the installation of a 5 MWe plant between INDE and Ingenieros Civiles Asociados (ICA) of México; CFE will provide advice. Under the contract, INDE will supply steam to the plant andbuytheelectricityitgeneratesfor3.75¢/kWh. After three years, a request for bids will be issued for the development of a 30-55 MWe plant. ICA will install and maintain the plant, monitor the field and production wells, evaluate their capacity, and disassemble the plant after three years. 1998 - 5 MWe backpressure unit began operation. Geothermal Resources in Latin America & the Caribbean 33PDF Image | Geothermal Resources in the Caribbean and Latin America
